CF12JB6R80

Overview

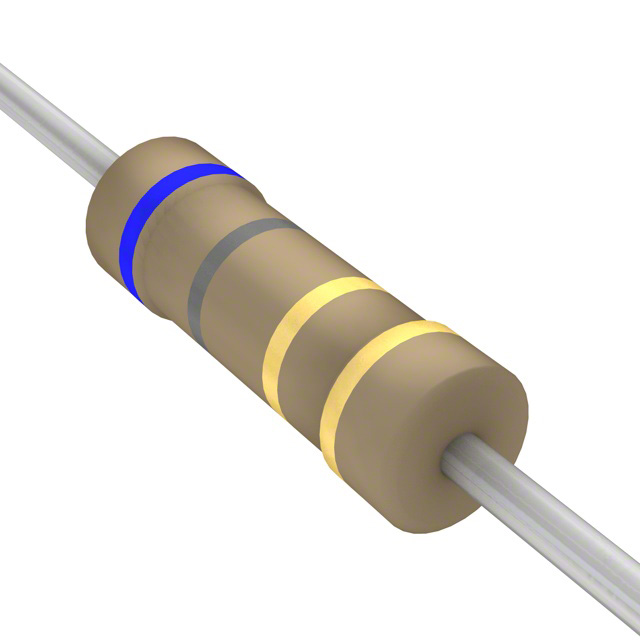

The CF12JB6R80 is a through-hole carbon film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 6.8 ohms with a tolerance of ±5%. The component has a power rating of 0.5W (1/2W) and utilizes an axial leaded package suitable for PCB mounting. It is characterized by a flame retardant coating, ensuring safety compliance in electronic assemblies.

Feature Summary

• Flame retardant coating for enhanced safety
• Axial through-hole construction for reliable PCB mounting

Applications

• General purpose electronic circuits
• Consumer electronics assemblies
• Industrial control equipment

Procurement Notes

Verify the specific manufacturer part number against official Stackpole documentation to confirm technical specifications. Ensure compatibility with existing circuit designs regarding power ratings and physical dimensions before procurement.

Selection Notes

Select this component for applications requiring standard carbon film characteristics and axial mounting. Confirm that the 0.5W power rating and 6.8-ohm resistance align with the circuit requirements. Verify environmental constraints such as operating temperature ranges.

Part Context

This resistor belongs to the CF series of carbon film components from Stackpole Electronics. The series is designed for general-purpose use, offering stable performance in various electronic applications. The axial form factor allows for easy integration into printed circuit boards.

Replacement Considerations

Substitute only with verified equivalent parts from the same manufacturer or approved alternatives with identical electrical parameters and physical dimensions.
