CF12JB750K

Overview

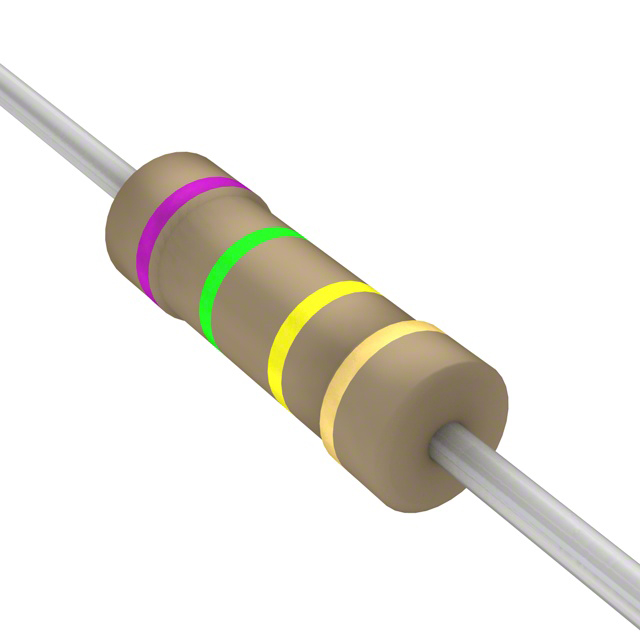

The CF12JB750K is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 750 kOhms with a tolerance of ±5%. The component has a power rating of 0.5W (1/2W) and operates within a temperature range of -55°C to +155°C. It includes a flame retardant coating for safety compliance.

Feature Summary

• Carbon film construction for general-purpose applications
• Flame retardant coating for enhanced safety
• Axial leaded package for PCB mounting

Applications

• General purpose electronic circuits
• Consumer electronics assemblies
• Industrial control equipment

Procurement Notes

Verify the specific suffix designation against official Stackpole documentation to confirm exact manufacturing specifications. Ensure the requested quantity aligns with standard packaging configurations provided by authorized distributors. Confirm RoHS compliance status directly from the manufacturer's current product data sheet prior to finalizing procurement orders.

Selection Notes

Select this component when a 750 kOhm resistance value with 5% tolerance is required in an axial form factor. The 0.5W power rating suits low-to-medium current applications. Consider the operating temperature range and flame retardant coating requirements for the target environment before integration into the design.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. It utilizes traditional carbon film technology, offering a cost-effective solution for standard circuit protection and biasing tasks where high precision or extreme stability is not the primary design constraint.

Replacement Considerations

CF12JT750K is a confirmed substitute with identical electrical parameters including 750 kOhm resistance, 5% tolerance, and 0.5W power rating.
