CF14JB110R

Overview

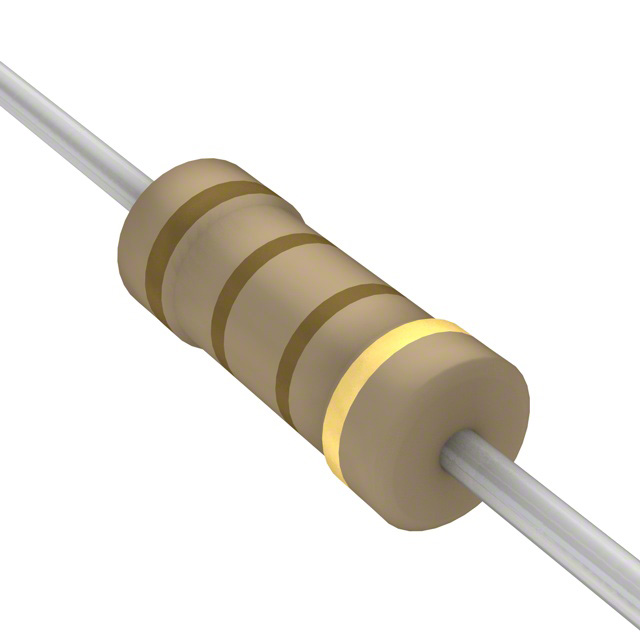

The CF14JB110R is a carbon film axial leaded resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 110 Ohms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 2.30mm in diameter and 6.00mm in length, with a maximum working voltage of 350V. The device utilizes an axial termination style suitable for through-hole PCB mounting.

Feature Summary

• Constructed using carbon film technology for general-purpose electronic applications.
• Features a flame-retardant coating to enhance safety during operation.
• Designed with axial leads for reliable through-hole printed circuit board mounting.

Applications

• General purpose electronic circuits
• Consumer electronics assemblies
• Industrial control systems

Procurement Notes

Verify the specific suffix configuration when ordering, as packaging options such as bulk or tape-and-reel may vary. Confirm compliance requirements including RoHS status against project specifications. Ensure that the axial package dimensions align with the target PCB layout constraints before finalizing procurement decisions.

Selection Notes

Select this component for standard through-hole designs requiring moderate precision. The 110 Ohm value fits common biasing and signal conditioning roles. Consider the 350V voltage limit and thermal characteristics when evaluating suitability for high-stress environments compared to higher-rated alternatives.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series offers a wide range of resistance values and power ratings. The CF14JB110R specifically addresses needs for standard axial components in cost-sensitive general-purpose applications.

Replacement Considerations

Direct substitutes include other manufacturers' 110 Ohm ±5% 1/4W axial carbon film resistors. Verify dimensional compatibility and voltage ratings when cross-referencing equivalent parts from different suppliers.
