CF14JB13M0

Overview

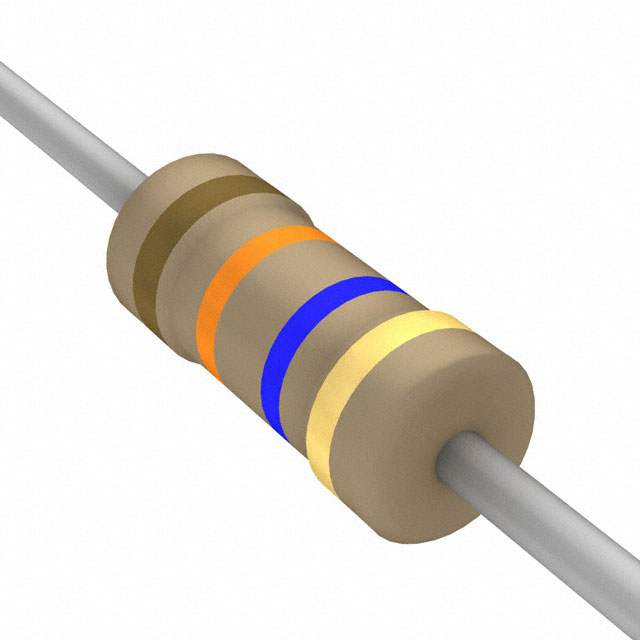

The CF14JB13M0 is a carbon film through-hole resistor manufactured by SEI Stackpole Electronics Inc. It features a resistance value of 13 Mohms with a tolerance of ±5%. The component has a power rating of 250 mW (1/4 W) and operates within a temperature range of -55°C to +155°C. It utilizes an axial leaded package with dimensions of 2.3 mm diameter by 6 mm length. The voltage rating is 350 V, and the temperature coefficient ranges from 0 PPM/°C to -1500 PPM/°C.

Feature Summary

• Constructed using carbon film technology for general-purpose commercial and industrial applications.
• Features flame retardant coatings as standard for enhanced safety.
• Designed for PCB mounting with axial leads suitable for manual or automated insertion.

Applications

• General purpose electronic circuits
• Commercial equipment signal conditioning
• Industrial control systems

Procurement Notes

Verify the specific suffix against official SEI Stackpole documentation to confirm exact electrical parameters and packaging type. Ensure compatibility with existing board layouts regarding axial lead spacing and body dimensions. Confirm RoHS compliance status via current manufacturer declarations before integration into regulated assemblies.

Selection Notes

Select this component when high resistance values are required in a compact axial form factor. The wide operating temperature range supports use in environments with significant thermal fluctuations. Verify that the 350 V voltage rating meets circuit requirements for potential division or biasing applications.

Part Context

This part belongs to the CF series of carbon film resistors from SEI Stackpole Electronics. The series offers various resistance values and tolerances, providing a standardized solution for general-purpose discrete components. The CF designation indicates carbon film composition, distinguishing it from metal film or thick film alternatives.

Replacement Considerations

CF14JT13M0
