CF14JB15R0

Overview

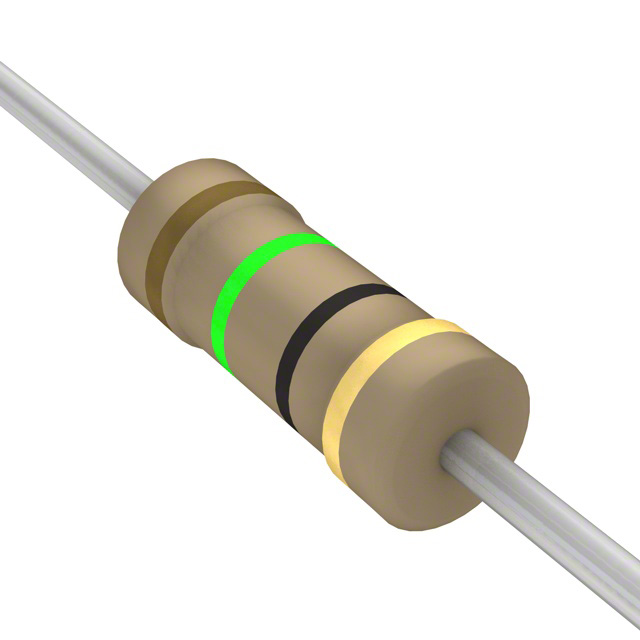

The CF14JB15R0 is a carbon film through-hole resistor manufactured by SEI Stackpole Electronics Inc. It features a resistance value of 15 Ohms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4 W) and utilizes an axial leaded package suitable for PCB mounting. It operates within a temperature range of -55°C to +155°C and carries a flame retardant coating.

Feature Summary

• Flame retardant coating standard
• General purpose commercial and industrial application suitability
• Axial leaded through-hole construction

Applications

• General purpose circuits
• Commercial applications
• Industrial applications

Procurement Notes

Verify the specific suffix 'JB' confirms the 5% tolerance and bulk packaging configuration against the official datasheet. Confirm RoHS3 compliance status and REACH regulatory standing prior to integration. Ensure the axial dimensions match the target PCB footprint requirements.

Selection Notes

Select this component for general-purpose designs requiring 15 Ohm resistance at 1/4W. The axial form factor supports manual or automated insertion. Consider the operating temperature range and voltage ratings relative to circuit conditions. Verify availability of equivalent parts if supply constraints exist.

Part Context

This part belongs to the CF series of carbon film resistors from SEI Stackpole. The series offers various resistance values and tolerances, designed for broad electronic applications. The CF14JB15R0 specifically addresses needs for low-value, moderate-power resistance in standard through-hole layouts.

Replacement Considerations

CF14JA15R0 is listed as a parameter-equivalent alternative within the same manufacturer's portfolio.
