CF14JB1K10

Overview

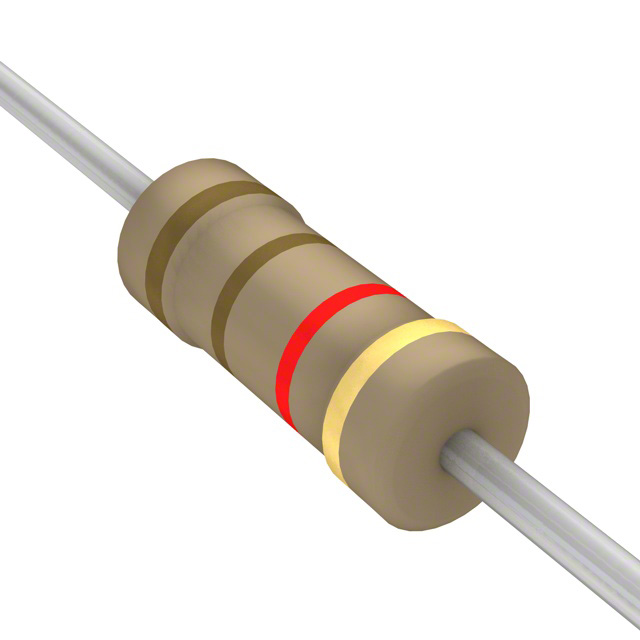

CF14JB1K10 is a fixed carbon film resistor manufactured by Stackpole Electronics Inc. It features an axial leaded through-hole mount configuration with a rectangular construction. The component has a resistance of 1100 ohms, a power rating of 0.25 W, and a tolerance of ±5%. It operates within a temperature range of -55°C to 155°C and has a voltage rating of 250 V. The temperature coefficient is specified as -400 ppm/°C. Physical dimensions include a diameter of 1.7 mm and a length of 3.3 mm, with leads measuring 0.4 mm in diameter and 28 mm in length.

Feature Summary

• Utilizes carbon film technology for stable resistive performance.
• Features a flame-retardant coating for enhanced safety.
• Designed for general-purpose electronic applications.

Applications

• General purpose circuitry
• Consumer electronics
• Industrial equipment

Procurement Notes

Verify the specific suffix 'JB' against official Stackpole documentation to confirm the exact tolerance and coating specifications, as standard CF series parts may vary. Ensure the ordering quantity matches the manufacturer's minimum packaging requirements. Confirm RoHS compliance status directly from the latest datasheet before procurement.

Selection Notes

Select this component when a 1100 ohm resistance value is required with ±5% tolerance. The 0.25 W power rating suits low-power signal processing or biasing circuits. Verify that the operating environment stays within the -55°C to 155°C range and that the 250 V maximum voltage rating is not exceeded in the design.

Part Context

The CF14JB1K10 belongs to the CF series of carbon film resistors from Stackpole Electronics. This series is characterized by its axial leaded package and flame-retardant coating. It serves as a standard passive component for general electronic assemblies requiring reliable resistance values.

Replacement Considerations

Direct substitutes include other manufacturers' 1k1 1/4W 5% axial carbon film resistors. Equivalent part numbers from other brands should match the 1100 ohm resistance, 0.25 W power rating, and axial package dimensions for mechanical compatibility.
