CF14JB1K30

Overview

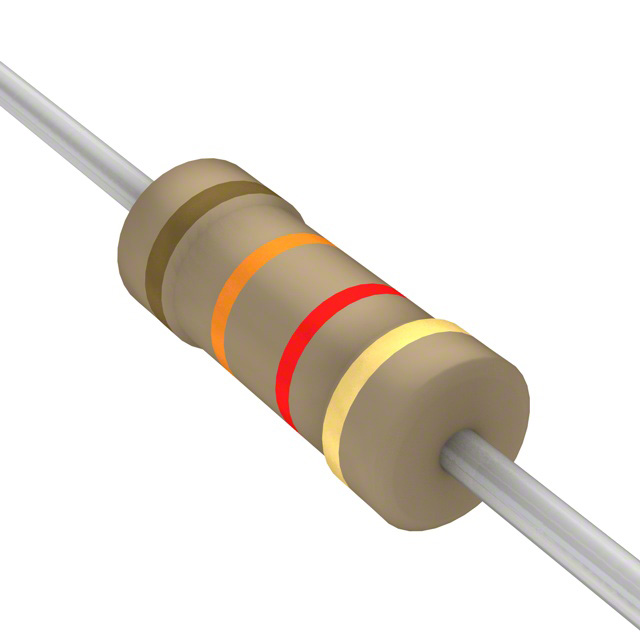

CF14JB1K30 is a fixed carbon film axial leaded resistor manufactured by Stackpole Electronics Inc. It features a resistance of 1300 ohms with a tolerance of ±5%. The component has a power rating of 0.25W and operates within a temperature range of -55°C to 155°C. It complies with RoHS3 standards and carries an ECCN classification of EAR99.

Feature Summary

• Flame retardant coating for enhanced safety
• Compatible with auto sequencing and insertion equipment
• Suitable for commercial and industrial applications

Applications

• Commercial electronic circuits
• Industrial control systems
• General purpose PCB mounting

Procurement Notes

Verify the manufacturer part number CF14JB1K30 against official Stackpole documentation to ensure accuracy. Confirm compliance requirements such as RoHS3 status and material composition before integration. Check for specific packaging options like bulk or tape and reel if available in current catalogs.

Selection Notes

Select this component for general-purpose through-hole applications requiring standard carbon film characteristics. Ensure the circuit design accommodates the ±5% tolerance and 0.25W power dissipation limits. Verify that the axial leaded form factor fits the target PCB layout constraints.

Part Context

This resistor belongs to the CF series of carbon film components from Stackpole Electronics. The series is designed for general use, offering flame retardant properties and compatibility with automated assembly processes. It serves as a standard passive component for basic resistive functions in various electronic assemblies.

Replacement Considerations

CF14GB1K30 is listed as a parameter equivalent substitute.
