CF14JB1K60

Overview

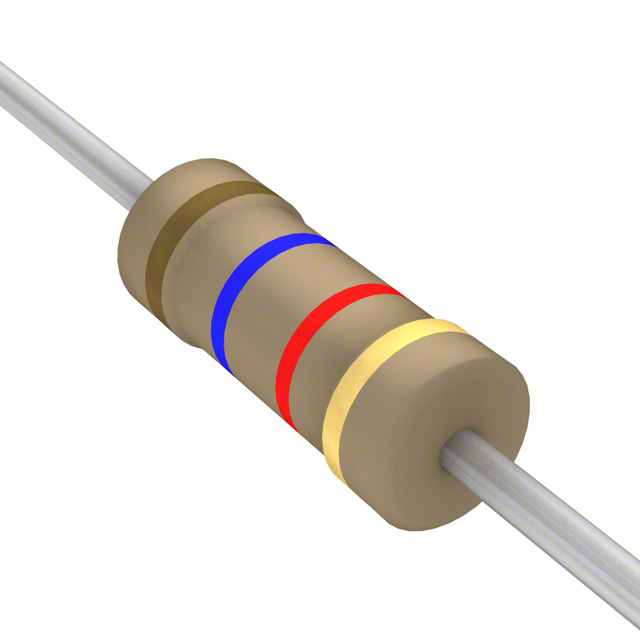

The CF14JB1K60 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 1.6 kOhms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.067 inches in diameter by 0.130 inches in length (1.70mm x 3.30mm). The device utilizes a flame-retardant coating for safety compliance.

Feature Summary

• Constructed using carbon film technology for general-purpose resistance applications.
• Features a flame-retardant coating designed to enhance safety during operation.
• Designed for PCB mounting with an axial leaded package configuration.

Applications

• General electronic circuit current limiting
• Voltage divider networks
• Biasing components in analog circuits

Procurement Notes

Verify the specific suffix 'JB' against the manufacturer datasheet to confirm the exact packaging type, as this series typically offers bulk, cut tape, or reel options. Ensure the ordering quantity aligns with the minimum order requirements associated with the selected packaging format. Cross-reference the RoHS status and REACH compliance data provided in the official documentation prior to final procurement decisions.

Selection Notes

Select this component when a standard 1.6 kOhm resistance with 5% tolerance is required for low-cost, general-purpose applications. The 1/4W power rating suits most low-power signal processing tasks. Consider the wide operating temperature range if the environment experiences significant thermal fluctuations compared to standard commercial grade parts.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is characterized by its cost-effective construction and reliable performance in standard electronic assemblies. The axial form factor allows for easy insertion into printed circuit boards, making it a common choice for legacy and modern mixed-signal designs requiring robust passive components.

Replacement Considerations

Direct substitutes include other manufacturers' 1.6 kOhm, 1/4W, ±5% carbon film axial resistors such as those from Vishay Dale (CFR series) or Yageo (RC series). Verify that any replacement maintains the same physical footprint and terminal compatibility for existing PCB layouts.
