CF14JB20K0

Overview

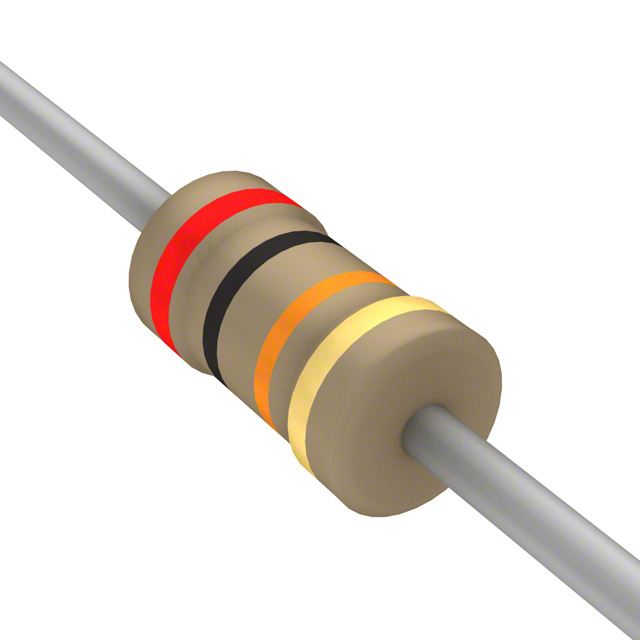

The CF14JB20K0 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 20 kOhms with a tolerance of ±5% and a power rating of 0.25W (1/4W). The component operates within a temperature range of -55°C to +155°C and has a temperature coefficient of 0/-500ppm/°C. Physical dimensions are 0.091 inches in diameter by 0.236 inches in length (2.30mm x 6.00mm). It includes a flame retardant safety coating and complies with RoHS3 standards.

Feature Summary

• Constructed from carbon film material for general-purpose electronic applications.
• Features a flame retardant coating designed to meet safety requirements.
• Utilizes an axial leaded package suitable for printed circuit board mounting.

Applications

• General purpose electronic circuits
• Printed circuit board assembly
• Industrial control equipment

Procurement Notes

Verify the specific manufacturer part number against official Stackpole documentation to ensure authenticity. Confirm that the flame retardant coating and RoHS3 compliance status match project requirements. Check for any recent product change notices or packaging updates before finalizing procurement orders.

Selection Notes

Select this component when a standard 20 kOhm resistance with 5% tolerance is required for axial mounting. Ensure the operating environment stays within the specified -55°C to +155°C range. Consider the physical size constraints of the PCB layout relative to the 2.30mm diameter and 6.00mm length dimensions.

Part Context

This resistor belongs to the CF series of carbon film components produced by Stackpole Electronics Inc. It shares the same electrical characteristics as the CFM14JA20K0 but differs in physical packaging and potentially manufacturing specifications. The CF series is widely used in general electronics for its reliability and cost-effectiveness.

Replacement Considerations

CFM14JA20K0

FAQ

What is the temperature coefficient of the CF14JB20K0?

The temperature coefficient ranges from 0 to -500ppm/°C.

Does the CF14JB20K0 have a safety coating?

Yes, it features a flame retardant coating for safety compliance.
