CF14JB20R0

Overview

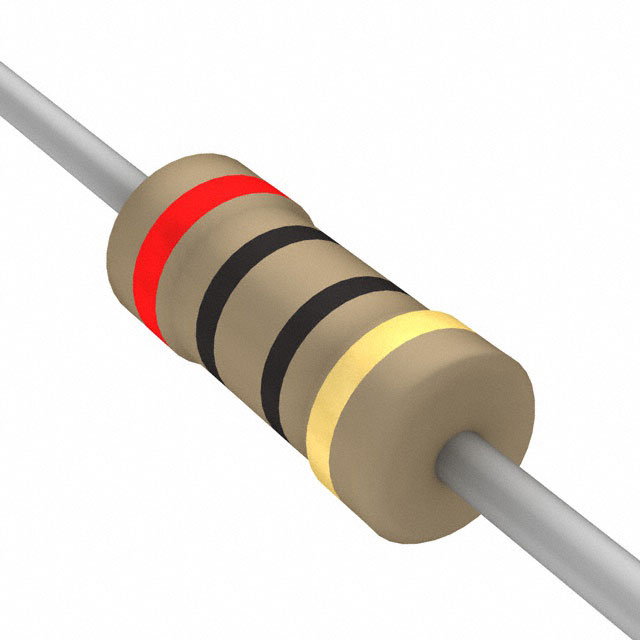

The CF14JB20R0 is a carbon film through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 20 Ohms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and utilizes an axial package. It operates within a temperature range of -55°C to +155°C and carries RoHS3 compliance.

Feature Summary

• Constructed using carbon film technology for general-purpose electronic applications.
• Features an axial leaded package designed for PCB mounting.
• Includes flame-retardant coating for enhanced safety.

Applications

• General purpose circuitry
• PCB mounting applications

Procurement Notes

Verify the specific suffix 'JB' against official Stackpole documentation to confirm exact packaging type, as distributors may list bulk or tape options. Confirm RoHS3 status and lead material specifications directly from the manufacturer datasheet prior to integration into production designs.

Selection Notes

Select this component for standard general-purpose circuits requiring 20 Ohm resistance. Ensure the 0.25W power rating and axial form factor align with the board layout constraints. Verify that the operating temperature range meets the environmental requirements of the final assembly.

Part Context

This part belongs to the CF series of carbon film resistors produced by SEI Stackpole. These components are widely used in consumer electronics and industrial equipment where cost-effective, reliable resistance is required. The axial design facilitates easy insertion into printed circuit boards.

Replacement Considerations

Cross-reference with CFM14JT20R0 for similar electrical characteristics but different packaging or series attributes. Verify physical dimensions and terminal compatibility before substituting any alternative axial carbon film resistors.
