CF14JB24R0

Overview

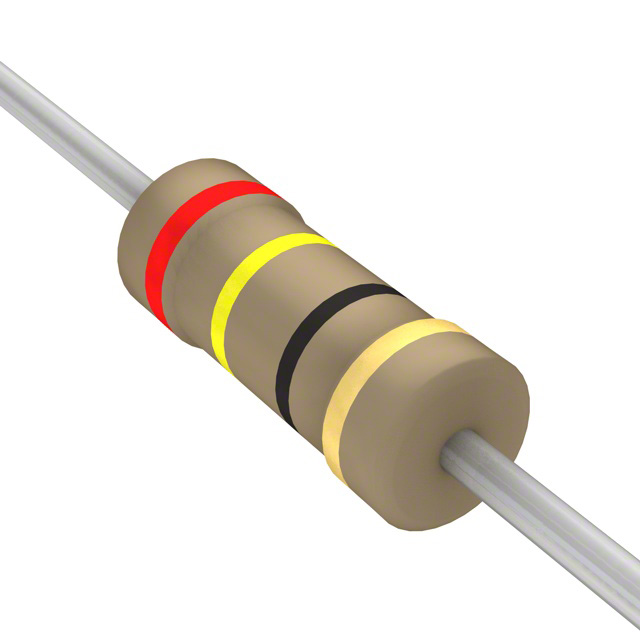

The CF14JB24R0 is a carbon film through-hole resistor manufactured by SEI Stackpole. It features a resistance value of 24 Ohms with a tolerance of ±5%. The component has a power rating of 250 mW (1/4 W) and utilizes an axial leaded package for PCB mounting. It belongs to the CF_CFM series and is supplied in bulk packaging, typically containing 1000 units per factory pack.

Feature Summary

• Constructed using carbon film technology for stable resistive performance
• Equipped with flame retardant coating to enhance safety standards
• Designed for standard printed circuit board mounting applications

Applications

• General purpose electronic circuitry
• Consumer electronics assemblies
• Industrial control systems

Procurement Notes

Verify the specific packaging configuration, as this model is designated for bulk distribution rather than reel or cut tape formats. Confirm that the required quantity aligns with the standard factory pack size of 1000 units to ensure efficient procurement and handling. Cross-reference the manufacturer part number with distributor listings to confirm current availability status and production lead times before finalizing orders.

Selection Notes

Select this component when a 24 Ohm resistance with 5% tolerance is required for low-power applications. Ensure the design accommodates the axial lead form factor and the 1/4 W power dissipation limit. Verify that the operating environment does not exceed the specified temperature range for carbon film resistors.

Part Context

This resistor is part of the CF series from SEI Stackpole, which offers a wide range of carbon film components. The CF series is widely used in general electronics due to its cost-effectiveness and reliability. The 'JB' suffix typically denotes the bulk packaging variant within this product line.

Replacement Considerations

Direct substitutes include other 24 Ohm, 1/4 W, 5% tolerance carbon film resistors from various manufacturers. Equivalent parts may be found in the CFM14JT24R0 series if reel packaging is preferred, provided the physical dimensions are compatible.
