CF14JB2R40

Overview

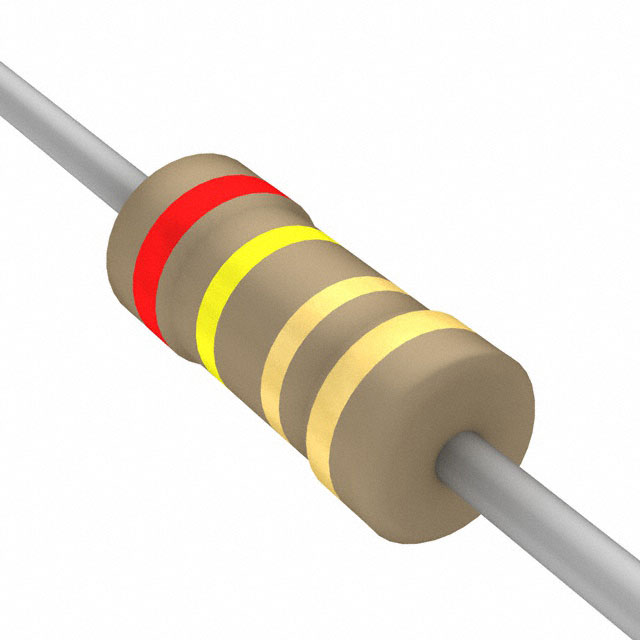

The CF14JB2R40 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 2.4 ohms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 2.30mm in diameter and 6.00mm in length. The part belongs to the CF series and is currently active.

Feature Summary

• Utilizes carbon film technology for stable resistive performance
• Designed for general-purpose PCB mounting applications
• Compliant with RoHS directives and REACH regulations

Applications

• General purpose electronic circuits
• PCB mounting assemblies
• Consumer electronics manufacturing

Procurement Notes

Verify the specific ordering suffix to confirm packaging type, such as tape and reel or bulk, as these affect handling procedures. Confirm compliance requirements including RoHS status against project specifications. Ensure the voltage rating meets circuit demands. Check lead times as they may vary based on production schedules. Validate that the axial package fits the designated footprint.

Selection Notes

Select this component when a low-value, high-tolerance resistor is required for standard current paths. The 2.4-ohm value suits current sensing or limiting roles. The 1/4W rating provides adequate dissipation for moderate loads. Consider the wide operating temperature range for environmental robustness. Verify compatibility with automated placement equipment if using reel packaging.

Part Context

This resistor is part of the CF series from Stackpole Electronics, which focuses on cost-effective carbon film solutions. The series offers various resistance values and power ratings. The CF14JB2R40 specifically addresses needs for precise low-resistance connections in compact axial packages. It serves as a fundamental passive component in diverse electronic designs.

Replacement Considerations

Direct substitutes include other 2.4-ohm, 1/4W, ±5% axial carbon film resistors from compatible manufacturers. Ensure equivalent voltage ratings and temperature coefficients. Verify dimensional compatibility for existing footprints. Cross-reference datasheets for any differences in surge withstand capability or noise characteristics.
