CF14JB360R

Overview

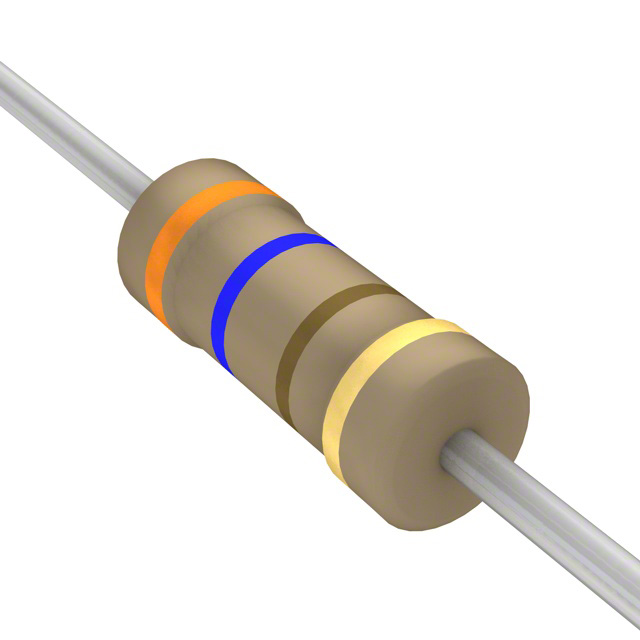

The CF14JB360R is a fixed carbon film through-hole resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 360 Ohms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. It utilizes an axial package with dimensions of 0.091 inches in diameter and 0.236 inches in length.

Feature Summary

• Constructed using carbon film technology for general-purpose electronic applications.
• Designed for through-hole mounting on printed circuit boards via axial leads.
• Compliant with RoHS3 standards and free from lead, mercury, cadmium, hexavalent chromium, PBBs, and PBDEs.

Applications

• General purpose electronic circuits
• Consumer electronics assemblies
• Industrial control equipment

Procurement Notes

Verify the specific suffix 'JB' against official Stackpole documentation to confirm packaging type, as standard CF series variants often utilize tape and reel or bulk formats. Ensure the requested quantity aligns with manufacturer minimum order requirements and standard factory pack sizes. Cross-reference the DigiKey part number ending in -ND for accurate distributor identification.

Selection Notes

Select this component when a 360 Ohm resistance value with ±5% tolerance is required for low-cost, general-purpose applications. Consider the 0.25W power rating and axial form factor for compatibility with existing PCB layouts. Verify that the operating environment remains within the specified -55°C to +155°C temperature range for reliable performance.

Part Context

This resistor belongs to the CF series of carbon film components produced by Stackpole Electronics Inc. The series offers a wide range of resistance values and power ratings suitable for various consumer and industrial markets. The CF designation indicates a standard carbon film construction, distinguishing it from metal film or wirewound alternatives.

Replacement Considerations

CF14JT360R

FAQ

What is the maximum working voltage for the CF14JB360R?

The datasheet specifies a maximum working voltage of 250V for this component.

Is the CF14JB360R compliant with environmental regulations?

Yes, the component is RoHS3 compliant and does not contain restricted substances such as lead or mercury.
