CF14JB3M60

Overview

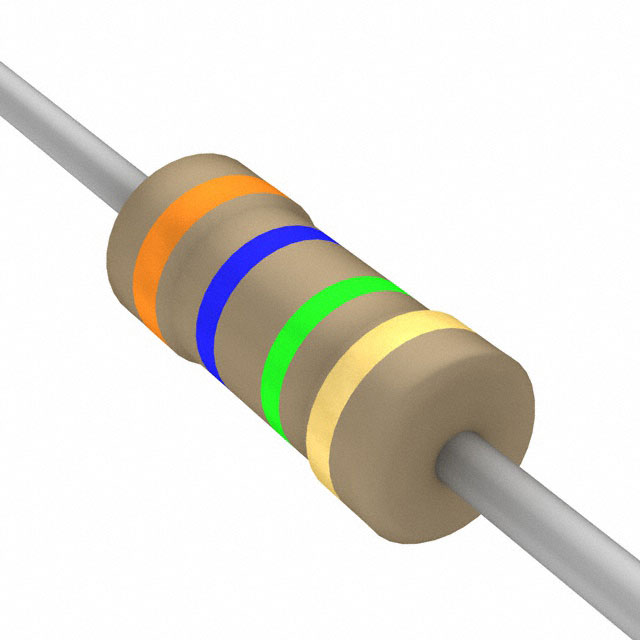

The CF14JB3M60 is a fixed axial leaded resistor manufactured by Stackpole Electronics Inc. It utilizes carbon film technology with a resistance value of 3.6 MOhms and a tolerance of ±5%. Rated for 0.25W (1/4W) power dissipation, it features a tubular package measuring 2.3 mm in diameter and 6 mm in length. The component operates within a temperature range of -55°C to +155°C and exhibits a temperature coefficient of 0 to -1500 ppm/°C. It complies with RoHS3 standards.

Feature Summary

• Constructed with carbon film composition for general-purpose electronic applications.
• Features an axial through-hole mounting style suitable for PCB integration.
• Designed with a flame-retardant coating for enhanced safety compliance.

Applications

• General purpose electronic circuits
• Consumer electronics assemblies
• Industrial control equipment

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm exact tolerance and packaging specifications. Ensure that the selected variant matches the required temperature coefficient and voltage rating for the target application environment. Cross-reference the part number with current datasheets to validate availability status and compliance certifications prior to final procurement decisions.

Selection Notes

Select this component based on its 3.6 MOhm resistance value and ±5% tolerance requirements. Consider the 0.25W power rating and operating temperature range when designing for thermal stability. Verify that the axial leaded format aligns with the printed circuit board layout constraints and assembly processes utilized in the manufacturing workflow.

Part Context

This resistor belongs to the CF series of carbon film components produced by Stackpole Electronics Inc. The series offers various resistance values and tolerances tailored for standard electronic assemblies. The CF14JB3M60 represents a specific configuration within this lineup, providing reliable performance for general-purpose applications requiring stable resistive characteristics.

Replacement Considerations

CF14JT3M60
