CF14JB470K

Overview

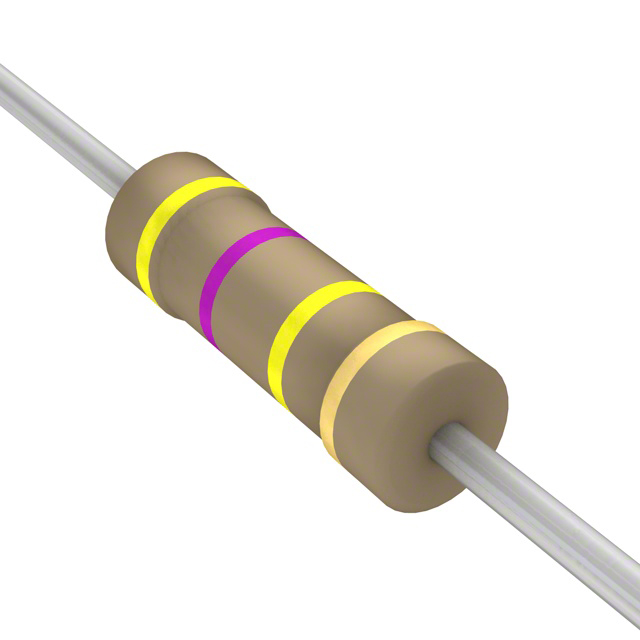

The CF14JB470K is a carbon film through-hole resistor manufactured by SEI Stackpole. It features a resistance value of 470 kOhms with a tolerance of ±5%. The component has a power rating of 250 mW (1/4 W) and utilizes an axial leaded package for PCB mounting. It includes a flame retardant coating for safety compliance.

Feature Summary

• Carbon film construction for general-purpose applications
• Flame retardant coating for enhanced safety
• Axial leaded design for standard PCB mounting

Applications

• General purpose electronic circuits
• PCB mounting in consumer electronics
• Industrial control systems

Procurement Notes

Verify the manufacturer designation, as SEI Stackpole is the current entity. Confirm RoHS compliance status via the official datasheet. Ensure the axial package dimensions match the target footprint. Check for specific safety certification requirements if used in regulated equipment.

Selection Notes

Select this component for cost-effective general-purpose resistance needs. The carbon film technology offers pulse load handling capabilities. Ensure the 470 kOhm value and 5% tolerance meet circuit specifications. Verify thermal derating requirements for high-temperature environments.

Part Context

This part belongs to the CF series of carbon film resistors from SEI Stackpole. It is designed for through-hole assembly on printed circuit boards. The axial configuration allows for easy insertion and soldering in standard manufacturing processes.

Replacement Considerations

CF14JT470K: Similar carbon film resistor with potentially different packaging or coating specifications. RC14JT470K: Carbon composition alternative with different electrical characteristics. HDM14JT470K: Higher temperature variant within the same manufacturer portfolio.
