CF14JB5K60

Overview

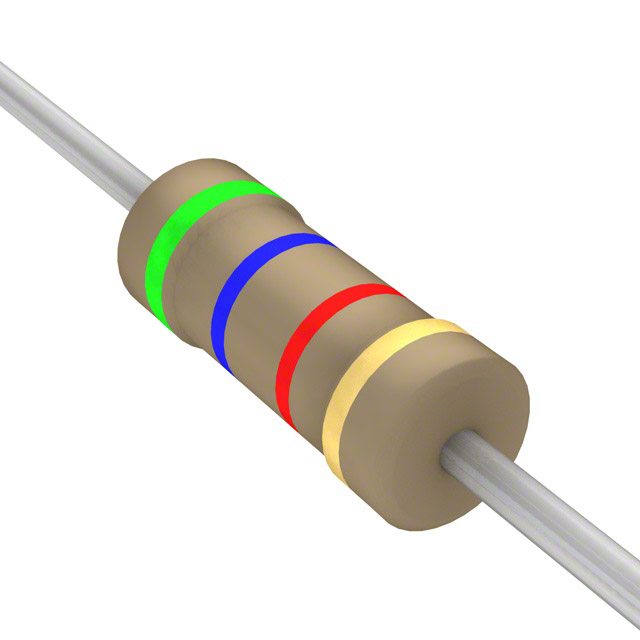

The CF14JB5K60 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 5.6 kOhms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 2.3 mm in diameter and 6.0 mm in length, with a voltage rating of 350V.

Feature Summary

• Constructed using carbon film technology for stable general-purpose performance.
• Features flame-retardant coating and safety characteristics compliant with industry standards.
• Designed for PCB mount applications with axial leads for easy insertion.

Applications

• General purpose electronic circuits
• Consumer electronics assemblies
• Industrial control equipment

Procurement Notes

Verify the specific suffix 'JB' against the manufacturer's current datasheet to confirm the exact tolerance and marking code, as variations exist within the CF series. Ensure the required packaging format matches available stock options such as bulk or tape and reel. Cross-reference the RoHS status with the latest environmental compliance documentation provided by Stackpole Electronics Inc before finalizing procurement orders.

Selection Notes

Select this component when a standard 5.6 kOhm resistance with 5% tolerance is required for low-cost, general-purpose applications. The 1/4W power rating suits most signal processing and biasing tasks where higher wattage is unnecessary. Consider the operating temperature range and voltage rating to ensure compatibility with the circuit environment and safety requirements.

Part Context

This resistor belongs to the CF series of carbon film axial resistors from Stackpole Electronics Inc. The series is widely used in various electronic industries due to its cost-effectiveness and reliability. The CF14JB5K60 specifically denotes a 1/4W variant with a 5.6 kOhm nominal value, fitting into the standard E24 series of preferred numbers for general engineering use.

Replacement Considerations

Compatible substitutes include other manufacturers' carbon film resistors with identical 5.6 kOhm resistance, 5% tolerance, and 1/4W power rating. Ensure physical dimensions and lead spacing match the existing PCB footprint. Verify that alternative parts meet the same voltage and temperature specifications.
