CF14JB5M60

Overview

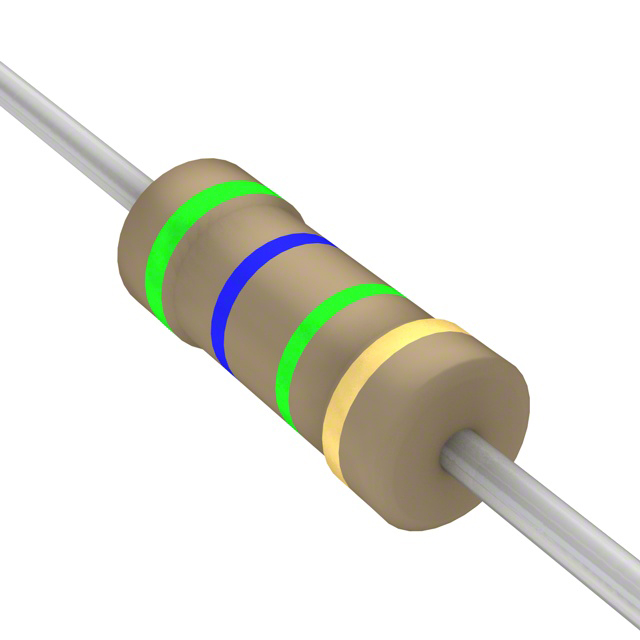

The CF14JB5M60 is a carbon film through-hole axial resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 5.6 MOhms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.091 inches in diameter by 0.236 inches in length (2.30mm x 6.00mm). The part complies with RoHS3 standards and carries an ECCN classification of EAR99.

Feature Summary

• Constructed from carbon film material for stable resistive performance
• Features flame-retardant coating for enhanced safety compliance
• Designed with axial leads for standard through-hole PCB mounting

Applications

• General-purpose electronic circuitry requiring high resistance values
• Industrial control systems operating within extended temperature ranges
• Consumer electronics assemblies utilizing through-hole technology

Procurement Notes

Verify the specific suffix 'JB' indicates the required tolerance and series attributes against official datasheets, as packaging or minor specification variations may exist between distributors. Confirm RoHS3 compliance status directly with the manufacturer or authorized suppliers prior to integration into regulated products. Ensure lead times align with production schedules due to potential supply chain variability for specialized axial components.

Selection Notes

Select this component when a 5.6 MOhm resistance with ±5% tolerance is required in a compact axial package. The 1/4W power rating suits low-current applications. Consider the -55°C to +155°C operating range for environments with thermal fluctuations. Verify that the carbon film composition meets the noise and stability requirements of the specific circuit design compared to metal film alternatives.

Part Context

This resistor belongs to the CF series of carbon film axial resistors from Stackpole Electronics. The CF series is widely used in general electronics for its balance of cost and performance. The CF14JB5M60 specifically denotes a 1/4W rated part with a 5.6 MOhm value. It shares dimensional characteristics with other parts in the CF14 family, ensuring compatibility with standard automated insertion equipment.

Replacement Considerations

Direct substitutes must match the 5.6 MOhm resistance, ±5% tolerance, 1/4W power rating, and axial form factor. Equivalent parts from other manufacturers should be verified for identical temperature coefficients and physical dimensions to ensure mechanical fit.
