CF14JB5R10

Overview

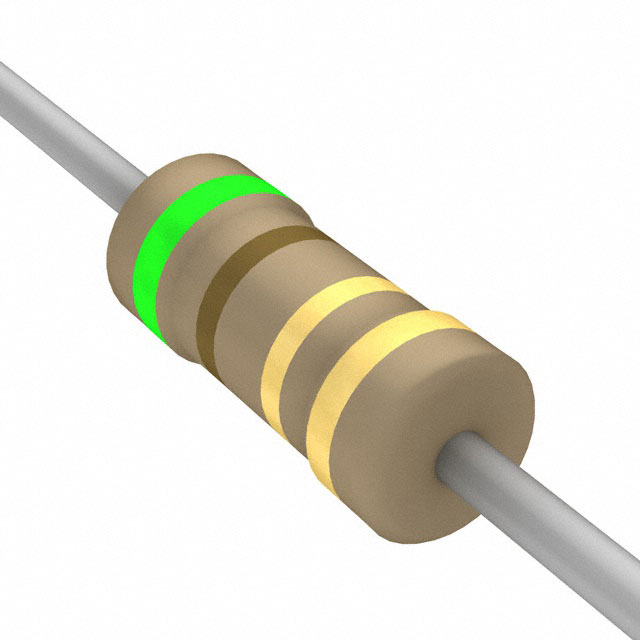

The CF14JB5R10 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 5.1 Ohms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 2.30mm in diameter and 6.00mm in length. The device complies with RoHS3 standards and carries an EAR99 classification.

Feature Summary

• Constructed using carbon film technology for stable resistive performance.
• Designed for general-purpose commercial and industrial circuit applications.
• Features flame-retardant coating for enhanced safety compliance.

Applications

• General purpose electronic circuits
• Commercial equipment signal conditioning
• Industrial control systems

Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact tolerance and packaging specifications. Ensure the selected variant matches the required voltage rating and thermal characteristics for the target application environment before finalizing procurement orders.

Selection Notes

Select this component when a standard 5.1 Ohm resistance value is required for low-voltage general-purpose applications. Consider the axial leaded format for manual insertion or wave soldering processes where surface mount alternatives are unsuitable for the mechanical constraints of the design.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is characterized by its reliability in standard environments and compliance with international environmental directives. It serves as a fundamental passive component for current limiting and biasing in various electronic assemblies.

Replacement Considerations

Direct parameter-equivalent substitutes include PCF14JB5R10 and CF14JT5R10, provided the tolerance requirements align with the ±5% specification of the original part.
