CF14JB62K0

Overview

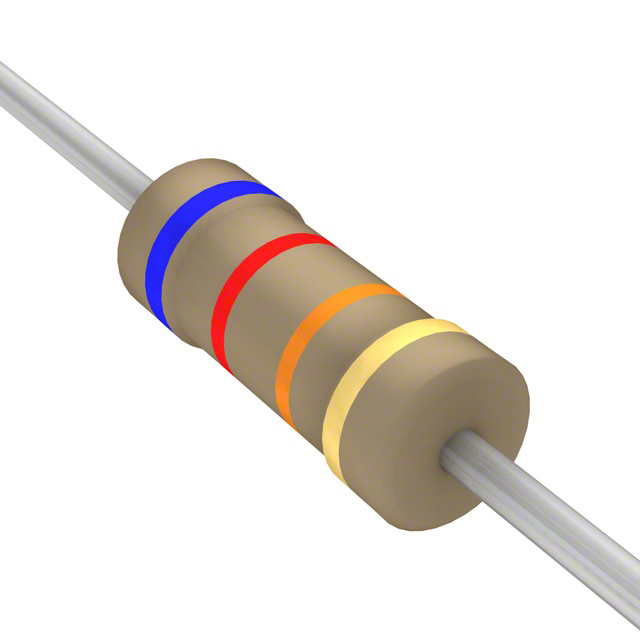

The CF14JB62K0 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 62 kOhms with a tolerance of ±5%. The component has a power rating of 250 mW (1/4 W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 2.3 mm in diameter and 6 mm in length, with a voltage rating of 350 V.

Feature Summary

• Constructed using carbon film technology for stable resistive performance.
• Designed for general-purpose PCB mounting applications.
• Compliant with RoHS3 standards and REACH regulations.

Applications

• General purpose electronic circuits
• PCB mounting assemblies
• Consumer electronics

Procurement Notes

Verify the specific packaging configuration required for your assembly line, as bulk packaging is documented for this part number. Confirm that the 62 kOhm resistance and 350 V voltage rating align with your circuit design requirements before procurement. Ensure compatibility with standard axial lead processing equipment.

Selection Notes

Select this component when a 62 kOhm resistance with 5% tolerance is required for general-purpose applications. The 1/4 W power rating and wide operating temperature range make it suitable for various consumer electronics. Verify that the axial package fits the available board space and that the 350 V rating meets the circuit's voltage demands.

Part Context

This resistor belongs to the CF series of carbon film components from Stackpole Electronics. The series offers standard axial packages with varying resistance values and tolerances. The CF14JB62K0 specifically provides a 62 kOhm value within the 1/4 W power class, serving as a common passive component for signal conditioning and biasing in analog circuits.

Replacement Considerations

Direct substitutes include other 62 kOhm ±5% 1/4 W axial carbon film resistors from Stackpole, such as CF14JT62K0 or CFM14JT62K0, provided the tighter tolerance or safety coating of the latter is not required. Cross-brand replacements must match the 2.3 mm x 6 mm body size and 350 V rating.

FAQ

What is the maximum working voltage for the CF14JB62K0?

The maximum working voltage for this component is 350 V.

Is the CF14JB62K0 compliant with environmental regulations?

Yes, the component is RoHS3 compliant and REACH compliant.
