CF14JB6M20

Overview

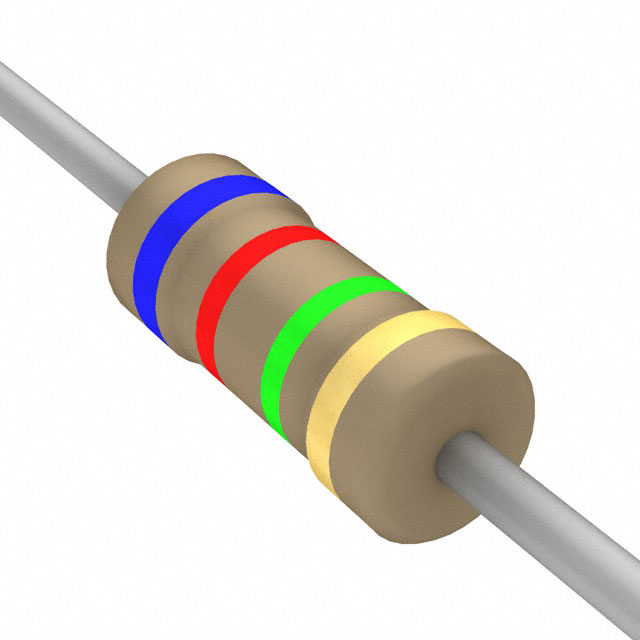

The CF14JB6M20 is a carbon film through-hole axial resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 6.2 MOhms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 3.50mm diameter by 9.00mm length. The device complies with RoHS3 standards and carries an EAR99 classification.

Feature Summary

• Constructed with flame retardant safety coating for enhanced reliability
• Utilizes carbon film technology for stable electrical performance
• Designed for general purpose PCB mounting applications

Applications

• General purpose electronic circuits
• PCB mounting assemblies
• Industrial control equipment

Procurement Notes

Verify the specific suffix and resistance value against design requirements before ordering. Confirm compliance with current environmental regulations such as RoHS3. Check manufacturer datasheets for precise handling and storage guidelines to ensure component integrity during assembly processes.

Selection Notes

Select this component when high resistance values in the megaohm range are required for axial through-hole implementations. Ensure the circuit environment stays within the specified operating temperature limits. Verify that the 1/4W power rating is sufficient for the intended application load conditions.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. It shares common form factors and material technologies with other models in the lineup, offering consistent quality and performance characteristics for standard electronic manufacturing needs.

Replacement Considerations

CFR16J6M2 by TE Connectivity Passive Product is listed as a similar alternative.
