CF14JB750K

Overview

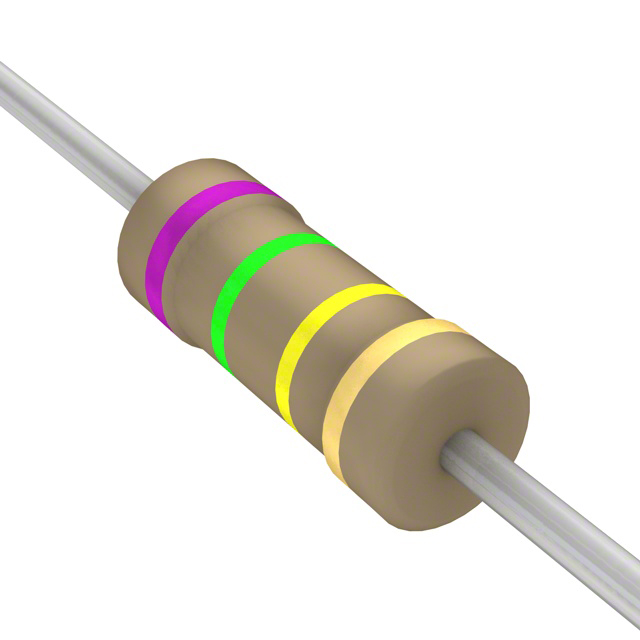

The CF14JB750K is a carbon film through-hole resistor manufactured by SEI Stackpole. It features a resistance value of 750 kOhms with a tolerance of ±5%. The component has a power rating of 250 mW (1/4 W) and utilizes an axial package style for PCB mounting. It is part of the CF_CFM series and includes flame retardant coating.

Feature Summary

• Constructed using carbon film technology for stable resistance performance
• Features flame retardant coating to enhance safety in circuit applications
• Designed for axial lead installation on printed circuit boards

Applications

• General purpose electronic circuits
• Consumer electronics assemblies
• Industrial control systems

Procurement Notes

Verify the specific suffix 'JB' against official datasheets to confirm flame retardant coating status, as standard 'JT' variants may differ. Confirm RoHS compliance details directly from the manufacturer's documentation before integration into regulated products.

Selection Notes

Select this component when a 750 kOhm resistance with 5% tolerance is required in a 1/4 W axial form factor. Ensure the application environment supports the operating temperature range specified for carbon film resistors and verify space constraints for axial leads.

Part Context

This part belongs to the CF series of carbon film resistors from SEI Stackpole. The series offers various resistance values and tolerances, commonly used in general-purpose electronics where cost-effectiveness and reliability are prioritized over high-precision requirements.

Replacement Considerations

CF14JT750K is a parameter-equivalent alternative within the same series, though it may lack the flame retardant coating associated with the JB suffix.
