CF14JB75R0

Overview

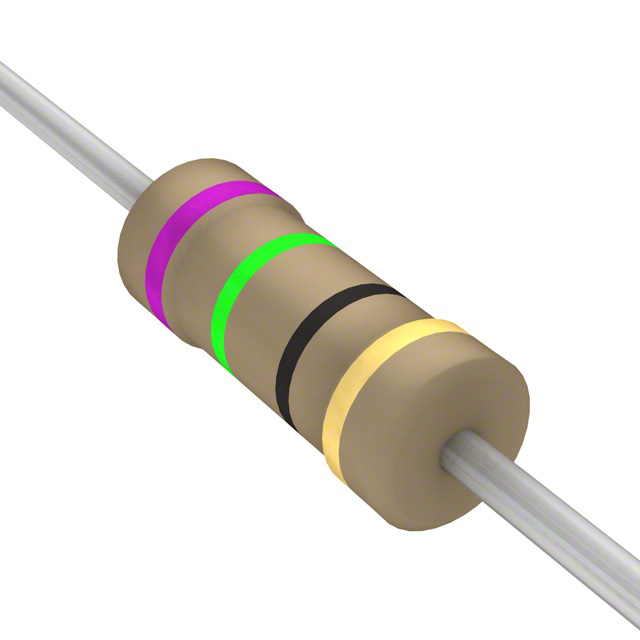

The CF14JB75R0 is a carbon film through-hole resistor manufactured by SEI Stackpole. It features a resistance value of 75 ohms with a tolerance of ±5%. The component has a power rating of 250 mW (1/4 W) and utilizes an axial leaded package for PCB mounting. Operating temperatures range from -55°C to +155°C, and it complies with RoHS standards.

Feature Summary

• Constructed using carbon film technology for stable performance in general-purpose applications.
• Designed for axial through-hole mounting on printed circuit boards.
• Capable of operating within a wide temperature range from -55°C to +155°C.

Applications

• General purpose electronic circuits
• PCB mounting for signal conditioning
• Consumer electronics assembly

Procurement Notes

Verify the specific manufacturer designation, as listings may reference SEI Stackpole or Stackpole Electronics Inc. Confirm that the axial leaded package matches your board layout requirements. Ensure compliance with RoHS directives if required for your manufacturing process. Cross-reference the 75-ohm value and 1/4-watt rating against your schematic specifications before finalizing orders.

Selection Notes

Select this component when a standard carbon film resistor is suitable for non-critical precision applications. The axial form factor requires drilled holes, distinguishing it from surface-mount alternatives. Consider the ±5% tolerance and thermal characteristics to ensure they align with the circuit's operational limits and environmental conditions.

Part Context

This part belongs to the CF series of carbon film resistors from SEI Stackpole. It shares the same physical dimensions and electrical ratings as the CF14JT75R0 variant, differing primarily in the suffix designation which may relate to specific packaging or internal quality classifications within the manufacturer's product line.

Replacement Considerations

The CF14JT75R0 is a confirmed substitute with identical electrical parameters and physical dimensions. Other axial carbon film resistors with 75 ohms, 1/4 W, and ±5% tolerance may serve as functional equivalents if pin compatibility is maintained.
