CF14JB82R0

Overview

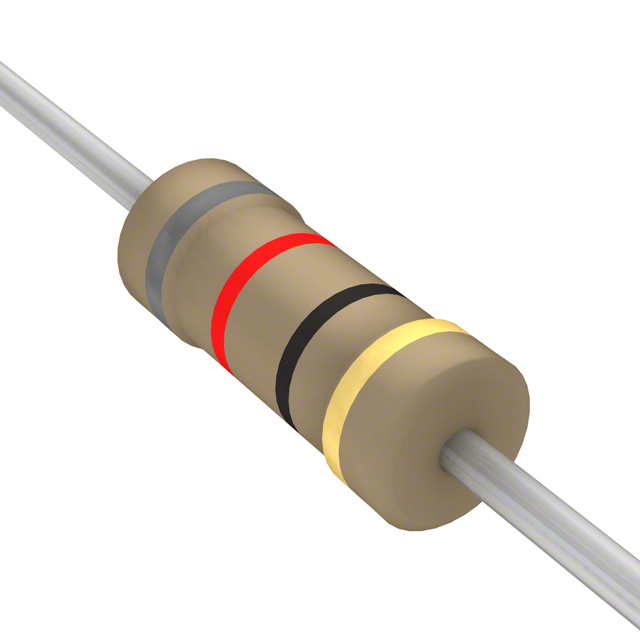

The CF14JB82R0 is an axial leaded carbon film resistor manufactured by SEI Stackpole. It features a resistance value of 82 Ohms with a tolerance of ±5%. The component has a power rating of 250 mW (1/4 W) and operates within a temperature range of -55°C to +155°C. It utilizes a molded body design for package uniformity and is RoHS compliant.

Feature Summary

• Non-inductive design suitable for pulse-load handling
• Molded body construction ensuring package uniformity
• RoHS compliant and lead-free manufacturing

Applications

• General purpose electronic circuits
• Pulse load applications
• PCB mounting projects

Procurement Notes

Verify the specific suffix 'JB' against official datasheets to confirm the exact tolerance and series designation, as distributor listings may vary. Confirm the manufacturer is SEI Stackpole Electronics Inc. Ensure the component meets required environmental standards such as RoHS compliance before integration into final assemblies.

Selection Notes

Select this component when a standard 82 Ohm resistance with 5% tolerance is required for general-purpose applications. The 1/4 W power rating and wide operating temperature range make it suitable for various PCB designs. Verify that the axial lead format fits the target board layout constraints.

Part Context

This part belongs to the CF series of carbon film resistors from SEI Stackpole. It is designed for through-hole mounting on printed circuit boards. The series offers non-inductive characteristics, making it distinct from wirewound alternatives in high-frequency or pulse environments.

Replacement Considerations

CF14JT82R0

FAQ

What is the maximum operating temperature?

The maximum operating temperature is +155°C.

Is this resistor inductive?

No, the CF series features a non-inductive design.
