CF14JB8R20

Overview

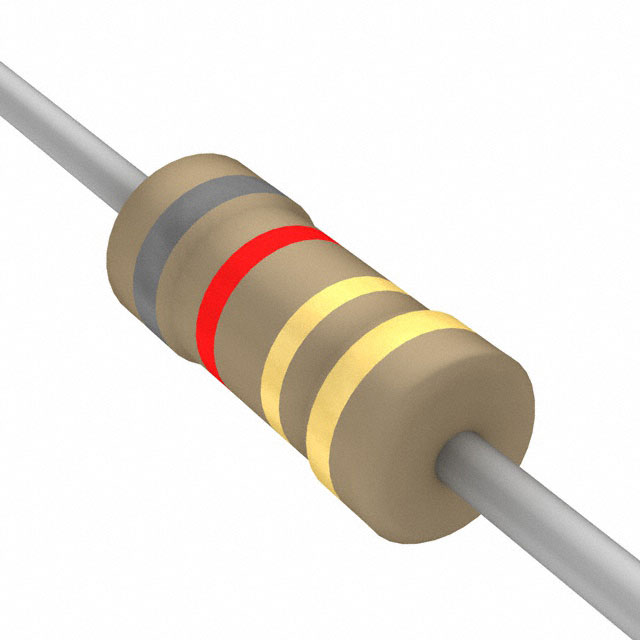

The CF14JB8R20 is a through-hole axial carbon film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 8.2 Ohms with a tolerance of ±5%. The component has a power rating of 0.25W (1/4W) and operates within a temperature range of -55°C to +155°C. It includes flame retardant coating for safety compliance.

Feature Summary

• Flame retardant coating ensures safety standards
• Carbon film composition provides stable performance
• Axial leaded package facilitates through-hole mounting

Applications

• General purpose electronic circuits
• Consumer electronics assemblies
• Industrial control equipment

Procurement Notes

Verify the specific suffix 'JB' indicates ±5% tolerance and carbon film composition against official datasheets. Confirm RoHS3 compliance status prior to ordering. Ensure axial package dimensions match PCB layout requirements. Check manufacturer lead times as availability may vary.

Selection Notes

Select this component for low-power applications requiring standard precision. The 1/4W rating suits general signal conditioning tasks. Verify thermal derating curves if operating near maximum temperature limits. Consider alternative series if higher stability or lower noise is required.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. It is designed for cost-effective, high-volume production environments. The axial format allows for easy manual or automated insertion into printed circuit boards.

Replacement Considerations

• CF14JT8R20
• CFM14JT8R20

FAQ

What is the temperature coefficient of the CF14JB8R20?

The temperature coefficient is specified as 0/-850ppm/°C.

Is the CF14JB8R20 RoHS compliant?

Yes, the component complies with RoHS3 specifications.
