CF14JB9M10

Overview

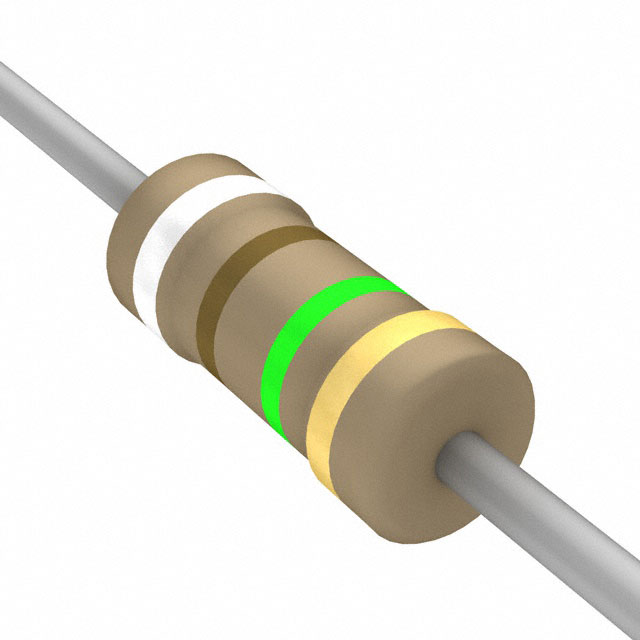

The CF14JB9M10 is a carbon film through-hole resistor from the Stackpole Electronics Inc CF series. It features a nominal resistance of 9.1 MOhms with a tolerance of ±5%. The component has a power rating of 250 mW (1/4 W) and operates within a temperature range of -55°C to +155°C. It utilizes an axial leaded package suitable for PCB mounting.

Feature Summary

• Constructed using carbon film technology for stable resistive performance
• Features flame retardant coatings as a standard safety characteristic
• Designed for general-purpose commercial and industrial applications

Applications

• General purpose circuitry in commercial equipment
• Industrial control systems requiring standard resistance values
• Consumer electronics assemblies

Procurement Notes

Verify the specific suffix 'JB' against official Stackpole documentation to confirm the exact resistance value and tolerance, as similar part numbers may vary. Ensure the ordering quantity meets manufacturer minimums and check current production lead times before finalizing procurement plans.

Selection Notes

Select this component when a 9.1 MOhm resistance is required in a compact axial form factor. Consider the 1/4 W power rating and wide operating temperature range for suitability in standard environments. Verify that the carbon film composition aligns with the application's noise and stability requirements compared to metal film alternatives.

Part Context

This resistor belongs to the CF series, which represents standard carbon film components designed for general use. The CFM variant offers a miniaturized version for space-constrained designs. This specific model provides a balance of electrical performance and physical size for standard PCB layouts.

Replacement Considerations

Cross-reference with CF14JT9M10 for potential availability differences, noting that 'J' denotes 5% tolerance while 'B' typically indicates tighter tolerances in some contexts, though verification is required. Ensure any substitute matches the 1/4 W rating and axial package dimensions.
