Product Detailed Parameters
- Description：RES 9.1 OHM 1/4W 5% AXIAL
- Series：*
- Mfr：Stackpole Electronics Inc
- Package：Bulk
Download product information
Overview

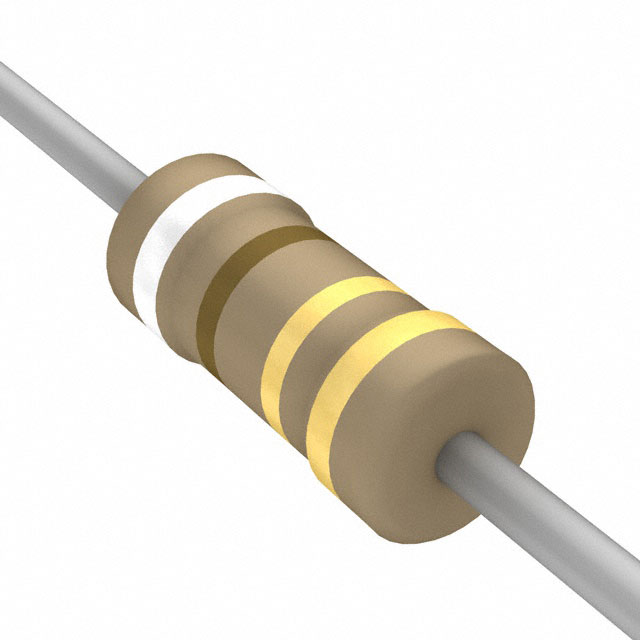

The CF14JB9R10 is a carbon film through-hole resistor manufactured by Stackpole Electronics Inc. It features an axial leaded package with dimensions of 2.30mm diameter and 6.00mm length. The component has a resistance value of 9.1 ohms, a power rating of 0.25W (1/4W), and a tolerance of ±5%. It operates within a temperature range of -55°C to +155°C and exhibits a temperature coefficient of 0/-400ppm/°C.
Feature Summary
- Constructed using carbon film technology for general-purpose applications
- Features flame retardant coating for enhanced safety compliance
- Designed for PCB mount installation via axial leads
Applications
- General purpose electronic circuits
- PCB mounting applications
- Consumer electronics assemblies
Procurement Notes
Verify the specific suffix 'JB' against official datasheets to confirm it denotes the standard carbon film variant rather than a specialized sub-series. Ensure the axial package dimensions match the design footprint requirements. Confirm RoHS compliance status directly from the manufacturer's current documentation before finalizing procurement.
Selection Notes
Select this component when a 9.1 ohm resistance value is required in a 1/4W axial form factor. The carbon film composition offers a balance of cost and performance for non-critical signal paths. Consider the ±5% tolerance and wide operating temperature range suitable for standard industrial or consumer environments.
Part Context
This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is characterized by its axial leaded construction and flame-retardant coating. It serves as a fundamental passive component for current limiting, voltage division, and biasing in various electronic systems.
Replacement Considerations
CF14JT9R10
FAQ
What is the temperature coefficient of the CF14JB9R10?
The temperature coefficient ranges from 0 to -400ppm/°C.
Does the CF14JB9R10 have a flame retardant coating?
Yes, the component features a flame retardant coating for safety.
