CF18JB12K0

Overview

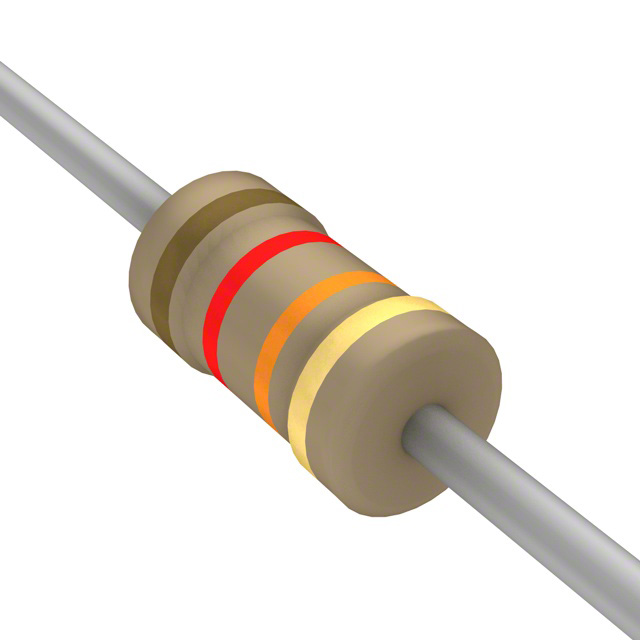

The CF18JB12K0 is a fixed carbon film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 12 kOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. It utilizes an axial through-hole package with dimensions of 1.70mm diameter by 3.30mm length. The temperature coefficient is specified as 0/-1500ppm/°C, and it complies with RoHS3 standards.

Feature Summary

• Constructed using carbon film technology for general-purpose applications
• Features a flame-retardant coating for enhanced safety
• Designed for through-hole mounting on printed circuit boards

Applications

• Commercial electronic equipment
• Industrial control systems
• General-purpose circuit protection

Procurement Notes

Verify the specific suffix against manufacturer documentation to confirm packaging type and lead time requirements. Ensure the ordering part number matches the exact resistance and tolerance specifications required for the design. Confirm compliance with regional environmental regulations such as RoHS3 before finalizing procurement orders.

Selection Notes

Select this component when a standard 12 kOhm resistance with 5% tolerance is required in a compact axial form factor. Consider the 1/8W power rating and wide operating temperature range suitable for diverse environments. Verify that the carbon film composition aligns with the noise and stability requirements of the target application circuit.

Part Context

This resistor belongs to the CF series from Stackpole Electronics Inc, designed for commercial and industrial use. It represents a standard axial leaded component widely used in general electronics. The series offers reliable performance for basic resistive functions in various consumer and industrial hardware designs.

Replacement Considerations

• CF18JT12K0

FAQ

What is the temperature coefficient of the CF18JB12K0?

The temperature coefficient is 0/-1500ppm/°C.

Does the CF18JB12K0 have a flame-retardant coating?

Yes, the component features a flame-retardant coating for safety.
