CF18JB130K

Overview

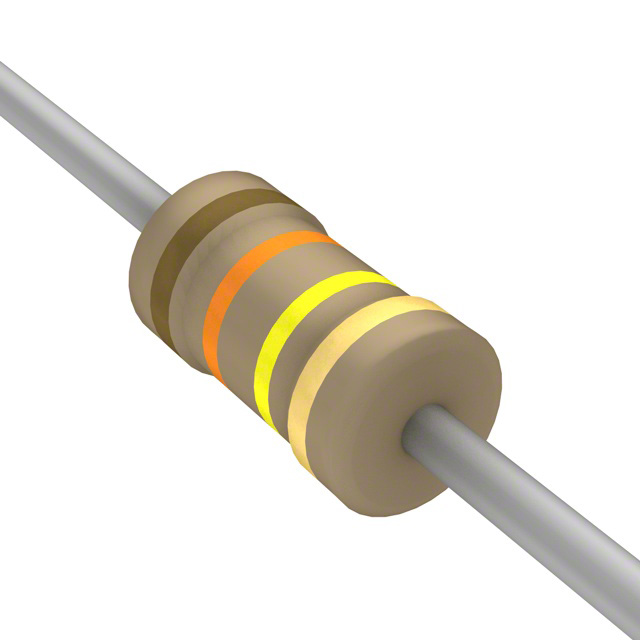

The CF18JB130K is a fixed axial leaded carbon film resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 130 kOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. It utilizes a tubular package with dimensions of 1.70mm diameter by 3.30mm length. The device carries a voltage rating of 250V and exhibits a temperature coefficient of -1500/+0ppm/°C.

Feature Summary

• Constructed with a flame-retardant, safety-rated carbon film composition for general-purpose applications.
• Features an axial through-hole mounting style suitable for PCB integration.
• Complies with RoHS3 standards and is free from REACH restrictions.

Applications

• Commercial electronic equipment
• Industrial control circuits
• General-purpose signal conditioning

Procurement Notes

Verify the specific suffix against official datasheets to confirm packaging type, as standard designations may vary between cut tape, ammo pack, or reel configurations. Ensure the requested quantity aligns with manufacturer minimum order requirements. Confirm compliance certifications such as RoHS3 are explicitly stated in the final purchase documentation to meet regulatory standards.

Selection Notes

Select this component when a 130 kOhm resistance value with 5% tolerance is required for low-power circuits. The 1/8W power rating limits its use to applications with minimal current draw. Verify that the operating environment stays within the specified -55°C to 155°C range. Consider the physical axial dimensions for adequate spacing on the printed circuit board layout.

Part Context

This part belongs to the CF series of carbon film resistors produced by Stackpole Electronics Inc. The series is designed for general-purpose commercial and industrial applications. The CF designation indicates a standard carbon film construction, while the '18' typically denotes the 1/8W power rating class within the manufacturer's product line.

Replacement Considerations

Direct substitutes include CF18JA130K and CF18JT130K, which share identical electrical specifications and physical dimensions. Alternative manufacturers offering 130 kOhm, 1/8W, ±5% axial carbon film resistors with compatible thermal ratings may also be used if pin compatibility is verified.
