CF18JB16K0

Overview

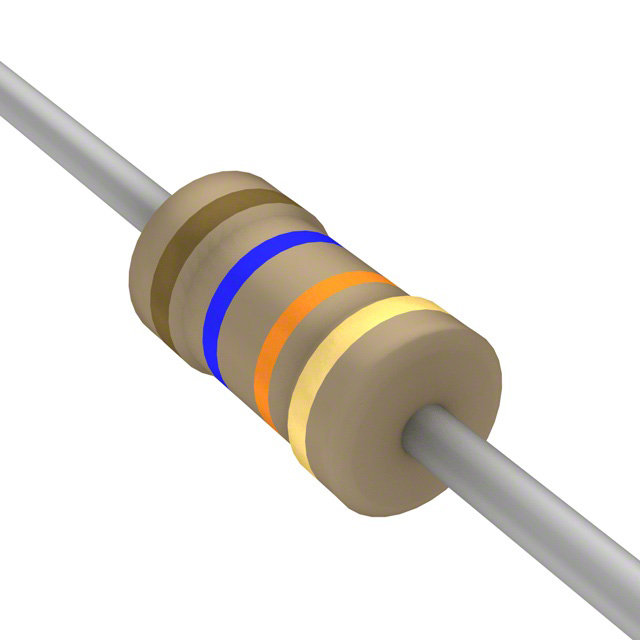

The CF18JB16K0 is a fixed carbon film resistor manufactured by SEI Stackpole Electronics Inc. It features a resistance value of 16 kOhms with a tolerance of ±5%. The component has a power rating of 125 mW (1/8 W) and operates within a temperature range of -55°C to +155°C. It utilizes an axial leaded through-hole mounting style with tubular construction. The device includes standard flame retardant coatings for safety compliance.

Feature Summary

• General-purpose carbon film technology suitable for commercial and industrial applications
• Standard flame retardant coating for enhanced safety
• Axial leaded package designed for PCB through-hole mounting

Applications

• Commercial electronic equipment circuits
• Industrial control system signal conditioning
• General purpose voltage division and current limiting

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm exact packaging and tolerance specifications. Ensure the requested part number matches the required resistance value and power rating for the target circuit design before finalizing procurement orders.

Selection Notes

Select this component for applications requiring standard general-purpose resistance with axial leads. Consider the 1/8 W power rating and wide operating temperature range when designing for thermal environments. Verify compatibility with existing PCB footprints and assembly processes for through-hole mounting.

Part Context

This resistor belongs to the CF series from Stackpole Electronics, representing a line of carbon film resistors. The series is characterized by its reliability in standard electronic assemblies and availability in various resistance values and power ratings for diverse circuit requirements.

Replacement Considerations

Cross-reference with other CF series variants or equivalent carbon film resistors from different manufacturers ensuring identical 16 kOhm resistance, 1/8 W power rating, and axial package dimensions.
