CF18JB1K10

Overview

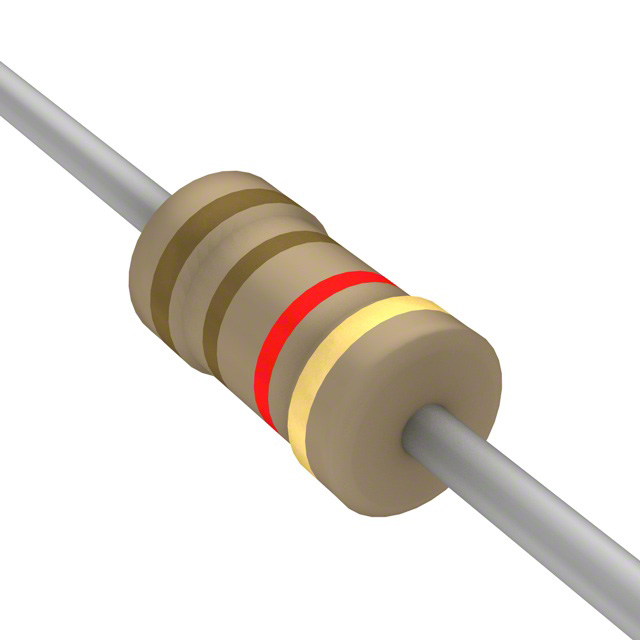

The CF18JB1K10 is a carbon film through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 1.1 kOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. It utilizes an axial leaded package with dimensions of 1.70mm diameter by 3.30mm length. The device includes standard flame retardant coatings for safety compliance.

Feature Summary

• Incorporates flame retardant coatings as a standard safety feature
• Designed for general-purpose commercial and industrial applications
• Compatible with auto sequencing and insertion equipment

Applications

• Commercial electronic circuits
• Industrial control systems
• General purpose PCB mounting

Procurement Notes

Verify the specific suffix designation against official datasheets to confirm exact performance characteristics, as variations may exist within the series. Confirm RoHS compliance status and packaging type requirements prior to ordering. Ensure the selected variant matches the required voltage and temperature ratings for the target application environment.

Selection Notes

Select this component when a standard 1.1 kOhm resistance with 5% tolerance is required in a compact axial form factor. Consider the 1/8W power rating and wide operating temperature range for suitability in space-constrained designs. Verify compatibility with automated assembly processes if high-volume production is planned.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is characterized by its cost-effectiveness and reliability for general-purpose use. The CF18JB1K10 specifically denotes the 1/8W power rating and axial lead configuration within this product line.

Replacement Considerations

CF18JA1K10

FAQ

What is the maximum operating temperature for the CF18JB1K10?

The maximum operating temperature is 155°C.

Does the CF18JB1K10 include safety coatings?

Yes, flame retardant coatings are included as a standard feature.
