CF18JB1K20

Overview

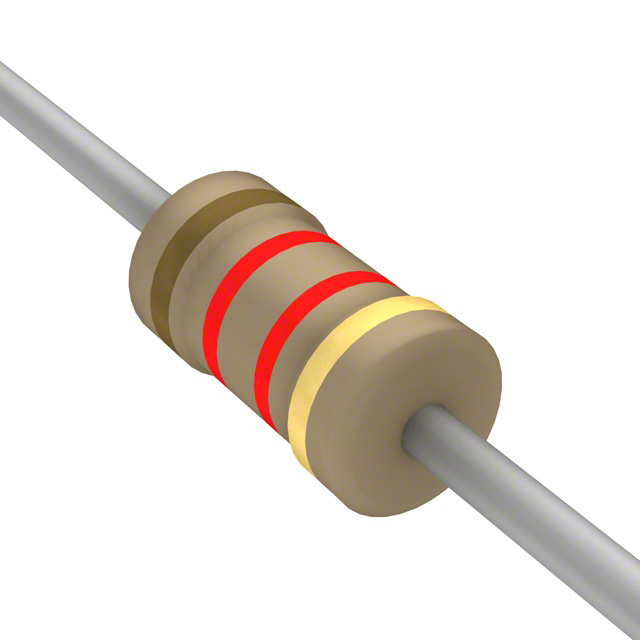

The CF18JB1K20 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 1.2 kOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to 155°C. Its temperature coefficient is specified as 0/-400ppm/°C. The physical dimensions are 0.067 inches in diameter by 0.130 inches in length (1.70mm x 3.30mm).

Feature Summary

• Flame retardant coating for safety compliance.
• Carbon film composition for general-purpose applications.

Applications

• Commercial electronic equipment.
• Industrial control circuits.
• General purpose circuit protection.

Procurement Notes

Verify the specific suffix 'JB' against the manufacturer's current datasheet to confirm the exact tolerance and material specifications, as ordering codes may vary. Confirm RoHS3 compliance status directly with the supplier documentation prior to final procurement decisions.

Selection Notes

Select this component for designs requiring standard axial leaded resistors with flame-retardant safety coatings. Ensure the 1/8W power rating and 1.2kOhm resistance align with the circuit requirements. Verify that the operating temperature range meets the environmental conditions of the target application.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is designed for general-purpose commercial and industrial applications. The axial package allows for easy insertion into printed circuit boards or point-to-point wiring.

Replacement Considerations

CF18JA1K20
