CF18JB200R

Overview

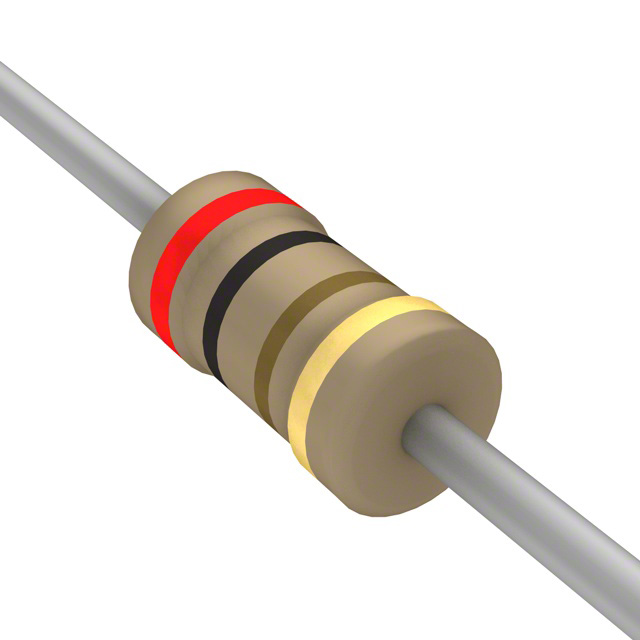

The CF18JB200R is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 200 ohms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 1.70mm in diameter and 3.30mm in length. The device exhibits a temperature coefficient of ±400ppm/°C and complies with RoHS3 standards.

Feature Summary

• Constructed using carbon film technology for stable resistive performance.
• Features a flame-retardant coating for enhanced safety compliance.
• Designed for general-purpose PCB mounting applications.

Applications

• General purpose electronic circuits
• PCB mounting assemblies
• Signal conditioning networks

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm exact tolerance and material specifications. Ensure compatibility with required operating temperatures and power derating curves before integration into final designs.

Selection Notes

Select this component when a standard 200-ohm resistance with 5% tolerance is required for low-power applications. Consider the axial lead format for manual or automated insertion processes. Verify that the 1/8W power rating aligns with circuit dissipation requirements under maximum ambient conditions.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series offers various resistance values and power ratings, providing a standardized solution for general electronic components. The CF18JB200R specifically addresses needs for compact, reliable passive components in consumer and industrial electronics.

Replacement Considerations

Cross-reference with other manufacturers' carbon film axial resistors rated at 1/8W, 200 ohms, and ±5% tolerance. Ensure equivalent temperature coefficients and physical dimensions for direct footprint replacement without mechanical modification.
