CF18JB22R0

Overview

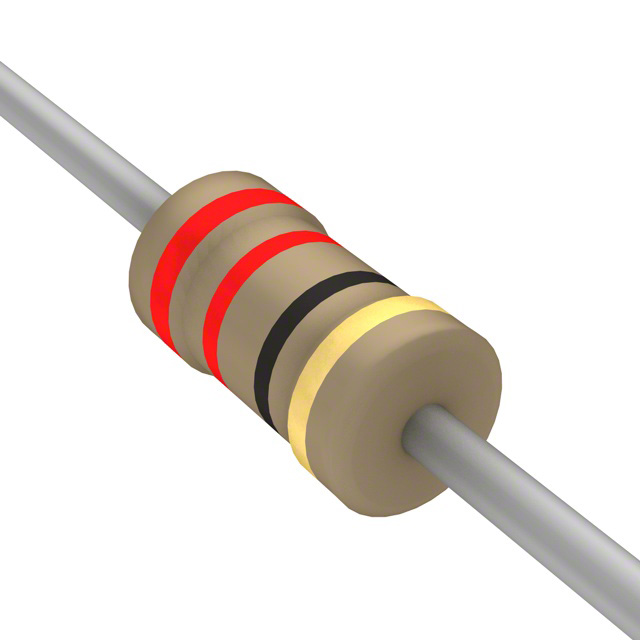

The CF18JB22R0 is a fixed through-hole resistor manufactured by Stackpole Electronics Inc. It belongs to the CF series and utilizes carbon film technology. The component features an axial package with a resistance value of 22 Ohms and a tolerance of ±5%. It has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to 155°C. The physical dimensions are 1.70mm in diameter and 3.30mm in length.

Feature Summary

• Constructed using carbon film composition for stable resistive performance.
• Features flame-retardant coating for enhanced safety compliance.
• Designed for general-purpose commercial and industrial applications.

Applications

• General purpose circuits in commercial equipment
• Industrial control systems
• Consumer electronics assemblies

Procurement Notes

Verify the specific suffix against official datasheets to confirm tolerance and power ratings, as variations exist within the CF series. Confirm RoHS3 compliance status for current production runs. Check manufacturer documentation for lead time updates, as standard delivery periods may vary. Ensure axial lead compatibility with target PCB layouts before ordering.

Selection Notes

Select this component for applications requiring general-purpose resistance with moderate precision. The 1/8W power rating suits low-current signal paths. Verify that the operating environment stays within the specified -55°C to 155°C range. Consider the axial form factor for manual assembly or through-hole mounting processes where surface mount alternatives are unsuitable.

Part Context

This part is part of the CF series carbon film resistors from Stackpole Electronics. These components are widely used in general electronic circuits due to their cost-effectiveness and reliability. The series offers various resistance values and power ratings, with the CF18 variant specifically designed for compact axial through-hole implementations.

Replacement Considerations

Equivalent parts include other 22 Ohm, 1/8W, ±5% axial carbon film resistors from manufacturers such as Yageo or Vishay. Ensure substitute components match the physical dimensions and voltage ratings. Verify that alternative parts meet the same environmental and safety standards required for the original design.

FAQ

What is the temperature coefficient of the CF18JB22R0?

The temperature coefficient is typically 0/-400ppm/°C for the CF series carbon film resistors.

Is the CF18JB22R0 RoHS compliant?

Yes, Stackpole Electronics states that the CF series is compliant with RoHS3 specifications.
