CF18JB2K70

Overview

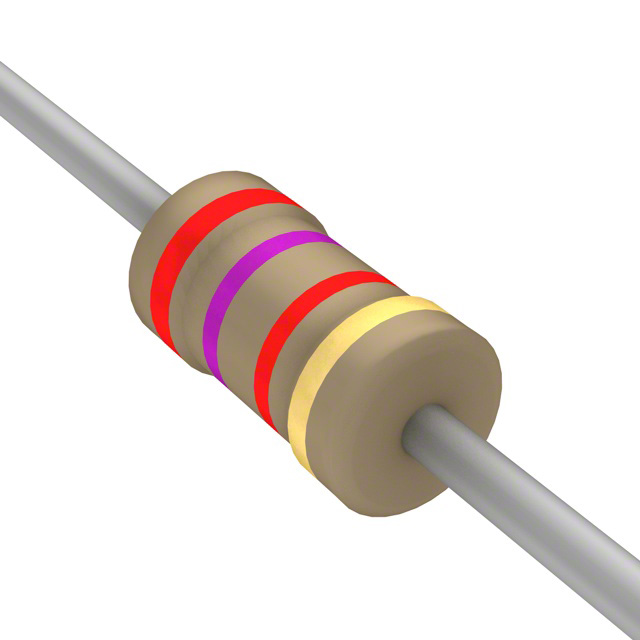

The CF18JB2K70 is a carbon film axial leaded resistor manufactured by Stackpole Electronics Inc. It belongs to the CF series and features a resistance value of 2.7 kOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 1.70mm in diameter and 3.30mm in length, utilizing an axial package style for PCB mounting.

Feature Summary

• Utilizes carbon film technology for general-purpose resistive applications
• Features a compact axial leaded design suitable for through-hole mounting
• Includes flame-retardant coating for enhanced safety compliance

Applications

• Commercial electronic equipment circuits
• Industrial control system components
• General-purpose signal conditioning

Procurement Notes

Verify the specific manufacturer part number against official Stackpole documentation to confirm availability and specifications. Ensure that the ordering suffix matches the required packaging format, such as bulk or tape, as these variations may affect handling and storage requirements without altering the electrical characteristics.

Selection Notes

Select this component when a standard 2.7 kOhm resistance with 5% tolerance is required for low-power applications. Consider the 1/8W power rating and wide operating temperature range for suitability in commercial and industrial environments where space constraints necessitate an axial form factor.

Part Context

This resistor is part of the CF series from Stackpole Electronics Inc, designed for general-purpose use. The series offers various resistance values and power ratings, providing a standardized solution for common circuit requirements across different electronic product categories.

Replacement Considerations

CF18JA2K70

FAQ

What is the temperature coefficient of the CF18JB2K70?

The temperature coefficient ranges from 0 to -850 ppm/°C.

Is the CF18JB2K70 RoHS compliant?

Yes, the component complies with ROHS3 standards.
