CF18JB2M20

Overview

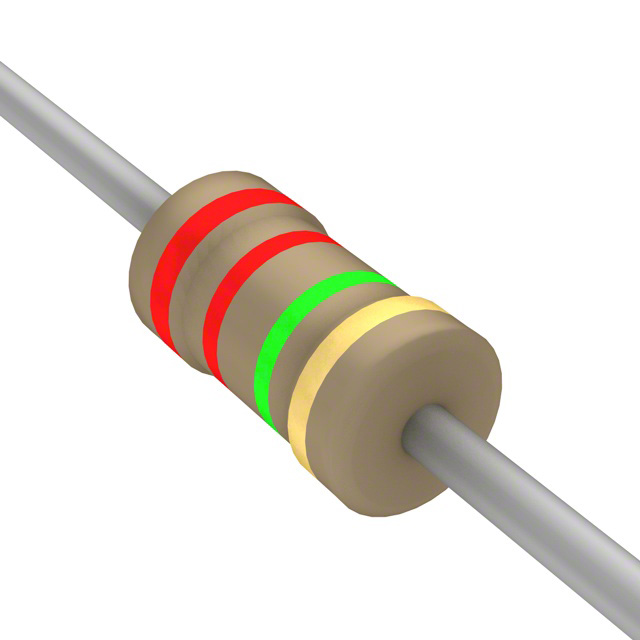

The CF18JB2M20 is a fixed axial leaded carbon film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 2.2 MOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.067 inches in diameter by 0.130 inches in length (1.70mm x 3.30mm). The device complies with RoHS3 standards.

Feature Summary

• Flame retardant coating standard for safety
• Suitable for commercial and industrial applications
• Compatible with Panasert auto-insertion equipment

Applications

• Commercial electronic circuits
• Industrial control systems
• General purpose PCB mounting

Procurement Notes

Verify the specific suffix against official datasheets, as packaging variations such as bulk or tape-and-reel may exist. Confirm compliance requirements including RoHS3 status and REACH regulations prior to integration. Ensure the selected variant matches the required insertion method if automated assembly is planned.

Selection Notes

Select this component for general-purpose applications requiring stable carbon film performance. Verify that the 2.2 MOhms resistance and 1/8W power rating align with circuit design constraints. Consider the axial package size for available board space and ensure compatibility with intended manufacturing processes.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is designed for general-purpose use in both commercial and industrial environments. These resistors offer flame retardant coatings and are compatible with automated insertion machinery for efficient production workflows.

Replacement Considerations

CF18JT2M20 is listed as a parameter-equivalent alternative.
