CF18JB43R0

Overview

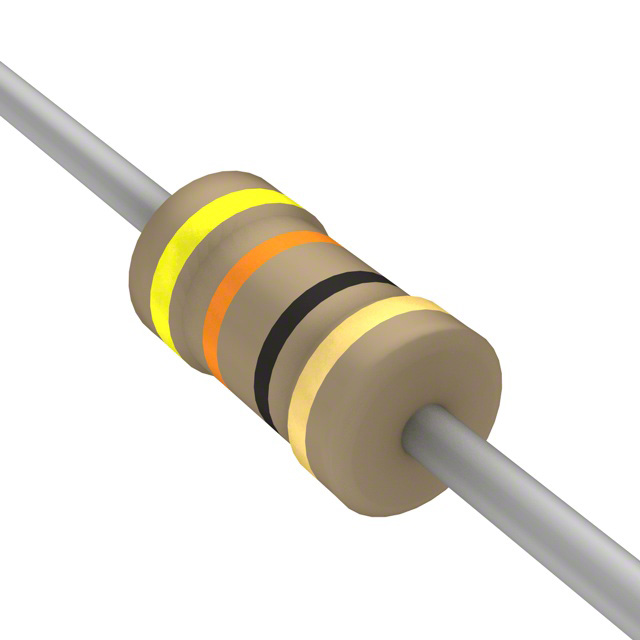

The CF18JB43R0 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 43 ohms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.067 inches in diameter by 0.130 inches in length (1.70mm x 3.30mm). The device includes flame retardant coatings for safety compliance.

Feature Summary

• Flame retardant coating standard for enhanced safety
• Carbon film composition for general purpose applications
• Axial leaded package suitable for PCB mounting

Applications

• Commercial electronic equipment
• Industrial control circuits
• General purpose signal conditioning

Procurement Notes

Verify the specific suffix against official datasheets to confirm exact packaging type, as bulk and tape/reel variants may exist within the same series. Confirm RoHS compliance status directly with the manufacturer or authorized distributors prior to final procurement decisions.

Selection Notes

Select this component for low-power general-purpose circuits requiring stable carbon film characteristics. Ensure the operating voltage does not exceed the maximum limits defined in the datasheet. Verify that the axial footprint matches the target PCB layout constraints.

Part Context

This part belongs to the CF/CFM series of carbon film resistors from Stackpole Electronics. These components are designed for commercial and industrial applications where cost-effective, reliable resistance is required. The series offers various resistance values and tolerances.

FAQ

What is the temperature coefficient of the CF18JB43R0?

The temperature coefficient is specified as ±400ppm/°C.

Is the CF18JB43R0 RoHS compliant?

Yes, the component is RoHS compliant according to Stackpole Electronics specifications.
