CF18JB560K

Overview

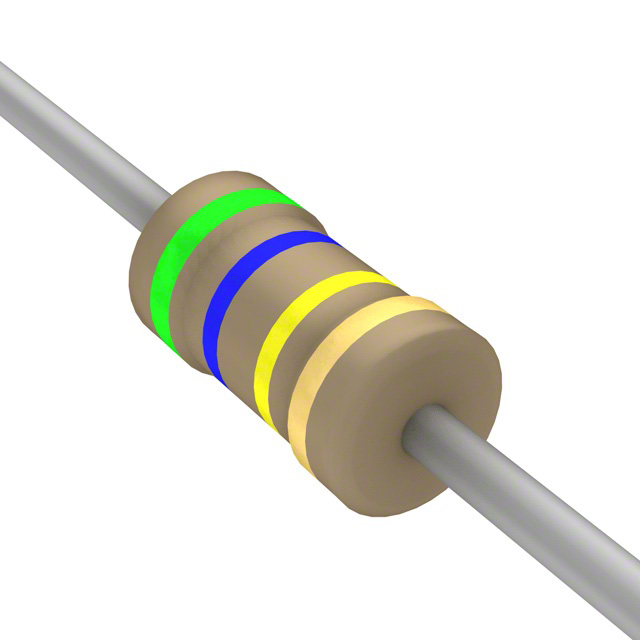

The CF18JB560K is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 560 kOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.067 inches in diameter by 0.130 inches in length (1.70mm x 3.30mm). The device includes flame retardant coatings for safety and complies with RoHS3 standards.

Feature Summary

• Flame retardant coating standard for enhanced safety
• Suitable for commercial and industrial applications
• RoHS3 compliant construction

Applications

• Commercial electronic equipment
• Industrial control circuits
• General purpose PCB mounting

Procurement Notes

Verify the specific suffix 'JB' against official Stackpole documentation to confirm the exact tolerance and temperature coefficient specifications, as variations exist within the CF series. Confirm packaging type availability, such as Ammo Pack or Bulk, directly with the manufacturer or authorized distributors prior to ordering.

Selection Notes

Select this component for general-purpose circuits requiring 560 kOhm resistance at 1/8W power dissipation. Ensure the operating environment stays within the -55°C to +155°C range. Verify that the axial leaded package fits the target PCB layout constraints compared to surface-mount alternatives.

Part Context

This part belongs to the CF series of carbon film resistors from Stackpole Electronics. The series is designed for general-purpose use in both commercial and industrial environments. The CF designation indicates a carbon film composition, offering a balance of performance and cost-effectiveness for standard electronic assemblies.

Replacement Considerations

CFM14JA560K is listed as an upgrade option. CF18JT560K and CF18JB560K are noted as parameter equivalents.
