CF18JB56R0

Overview

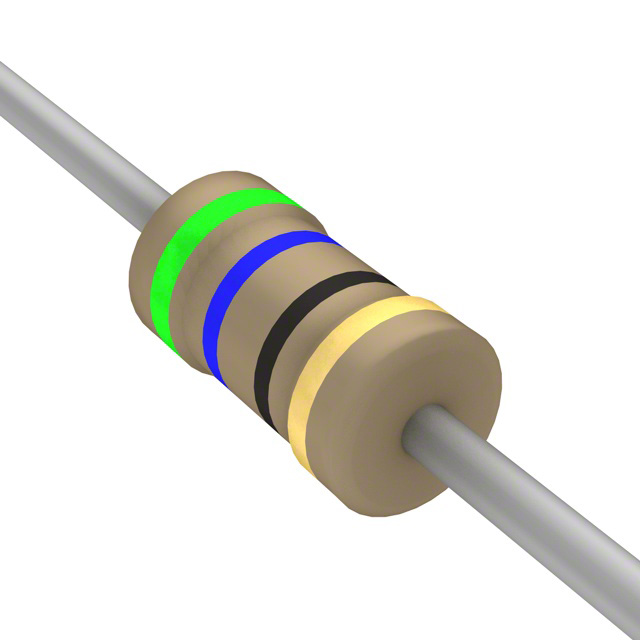

The CF18JB56R0 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 56 Ohms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.067 inches in diameter by 0.130 inches in length (1.70mm x 3.30mm). The device includes standard flame retardant coatings for safety.

Feature Summary

• Flame retardant coating applied as a standard safety feature
• Carbon film composition suitable for general purpose applications
• Axial leaded package designed for PCB mounting

Applications

• Commercial electronic equipment
• Industrial control circuits
• General purpose circuit protection

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure correct packaging configuration, such as bulk or tape and reel options. Confirm RoHS compliance status and environmental declarations prior to final procurement decisions. Cross-reference the full part number with official distributor catalogs to validate availability and manufacturing origin details.

Selection Notes

Select this component for designs requiring standard carbon film characteristics with a 1/8W power dissipation limit. Ensure the operating environment remains within the specified -55°C to +155°C temperature range. Verify that the axial footprint matches the target PCB layout constraints. Consider the ±5% tolerance when calculating circuit precision requirements.

Part Context

This resistor belongs to the CF series of carbon film components from Stackpole Electronics. The series is characterized by its use in commercial and industrial applications where standard reliability is required. The CF designation indicates the carbon film technology, while the JB suffix typically denotes the specific tolerance and power rating combination within the product line.

FAQ

What is the temperature coefficient of the CF18JB56R0?

The temperature coefficient is specified as 0/-400ppm/°C.

Is the CF18JB56R0 RoHS compliant?

Yes, the component is listed as RoHS compliant according to Stackpole Electronics documentation.
