CF18JB5M10

Overview

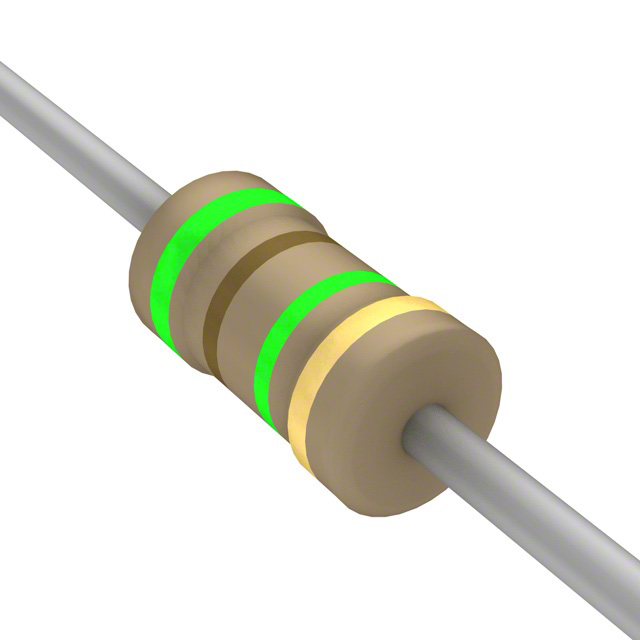

The CF18JB5M10 is a fixed carbon film resistor from the CF series by Stackpole Electronics Inc. It features a resistance of 5.1 MOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and utilizes an axial through-hole package. Operating temperatures range from -55°C to 155°C, with a temperature coefficient of 0/-1500ppm/°C.

Feature Summary

• General purpose carbon film construction suitable for commercial and industrial applications
• Standard flame retardant coating for enhanced safety
• Axial leaded design for standard through-hole mounting

Applications

• Commercial electronic equipment
• Industrial control circuits
• General purpose signal conditioning

Procurement Notes

Verify the specific suffix 'JB' against official datasheets to confirm it denotes the 5% tolerance variant within the CF series. Ensure the ordering code matches the required 5.1 MOhm value. Confirm RoHS3 compliance status if restricted substances are a constraint for the target assembly process.

Selection Notes

Select this component when a high-resistance value in the megaohm range is required for general-purpose analog or digital circuits. The axial form factor supports manual insertion or standard wave soldering processes. Consider the operating temperature range and power derating requirements for the final enclosure environment.

Part Context

This part belongs to the CF Series of carbon film resistors manufactured by Stackpole Electronics Inc. The series offers various resistance values and tolerances in a standardized axial package. It serves as a fundamental passive component for current limiting, voltage division, and biasing in low-power electronic designs.

Replacement Considerations

CF18JT5M10 is listed as a parameter equivalent substitute.
