CF18JB62K0

Overview

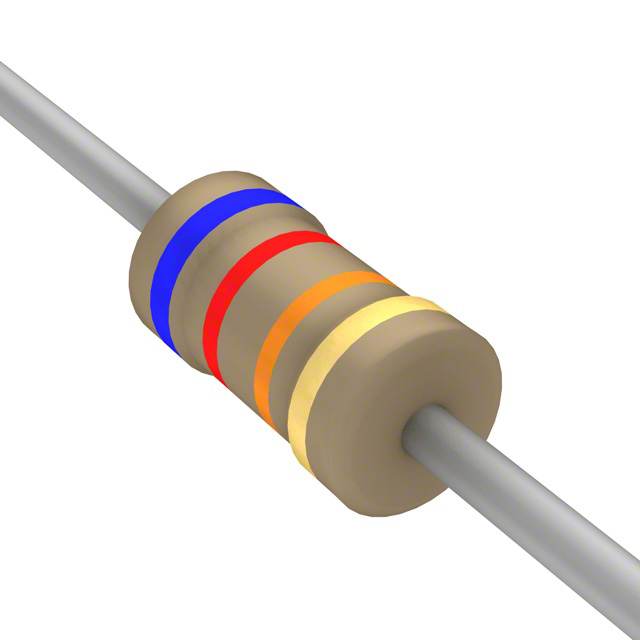

The CF18JB62K0 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 62 kOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.067 inches in diameter by 0.130 inches in length (1.70mm x 3.30mm). The device carries a flame-retardant coating for safety compliance.

Feature Summary

• Flame-retardant coating for enhanced safety
• Carbon film composition for general purpose use
• Wide operating temperature range

Applications

• Commercial electronic equipment
• Industrial control circuits
• General purpose PCB mounting

Procurement Notes

Verify the specific suffix against official datasheets to confirm packaging type, as 'JB' typically denotes bulk packaging while 'JT' indicates reel or cut tape options. Ensure the manufacturer part number matches Stackpole Electronics Inc documentation exactly. Confirm RoHS3 compliance status if required by project specifications before finalizing procurement orders.

Selection Notes

Select this component for applications requiring standard 5% tolerance carbon film resistors. The 1/8W power rating suits low-power signal conditioning tasks. Verify that the axial lead spacing fits the target PCB layout. Consider the wide temperature range for environments subject to thermal fluctuations beyond standard commercial limits.

Part Context

This resistor belongs to the CF series of carbon film components from Stackpole Electronics. The series is designed for general-purpose commercial and industrial applications. The CF18JB62K0 represents a specific resistance value within this standardized line of axial leaded resistors.

Replacement Considerations

CF18JT62K0 serves as a verified substitute offering identical electrical characteristics but in reel or cut tape packaging formats.
