CF18JB6K20

Overview

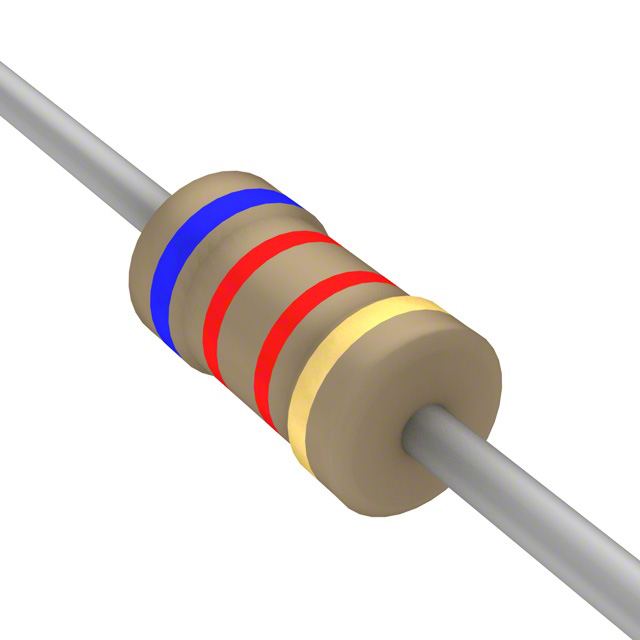

The CF18JB6K20 is a fixed carbon film resistor manufactured by Stackpole Electronics Inc. It features an axial through-hole mounting style with a power rating of 0.125W (1/8W). The resistance value is 6.2 kOhms with a tolerance of ±5%. The component operates within a temperature range of -55°C to +155°C and has a temperature coefficient ranging from 0 to -400 ppm/°C. Physical dimensions are 1.70mm diameter by 6.0mm length.

Feature Summary

• Flame retardant coating for enhanced safety
• Suitable for Panasert automated assembly processes

Applications

• Commercial electronic equipment
• Industrial control systems
• General purpose circuitry

Procurement Notes

Verify the specific suffix against official datasheets to confirm exact electrical parameters and packaging type. Ensure compatibility with existing thermal management requirements due to the 1/8W power rating. Confirm RoHS compliance status if environmental regulations apply to the final assembly. Cross-reference manufacturer part numbers to avoid substitution errors during procurement.

Selection Notes

Select this component for applications requiring standard general-purpose resistance in compact axial packages. Consider the wide operating temperature range for environments subject to thermal fluctuations. Evaluate the ±5% tolerance against circuit precision requirements. Ensure PCB layout accommodates the specified axial lead spacing and physical footprint constraints.

Part Context

This resistor belongs to the CF series of carbon film components designed for commercial and industrial use. The series offers flameproof versions and supports automated placement. It serves as a fundamental passive element for current limiting, voltage division, and biasing in various electronic circuits.
