CF18JB6M80

Overview

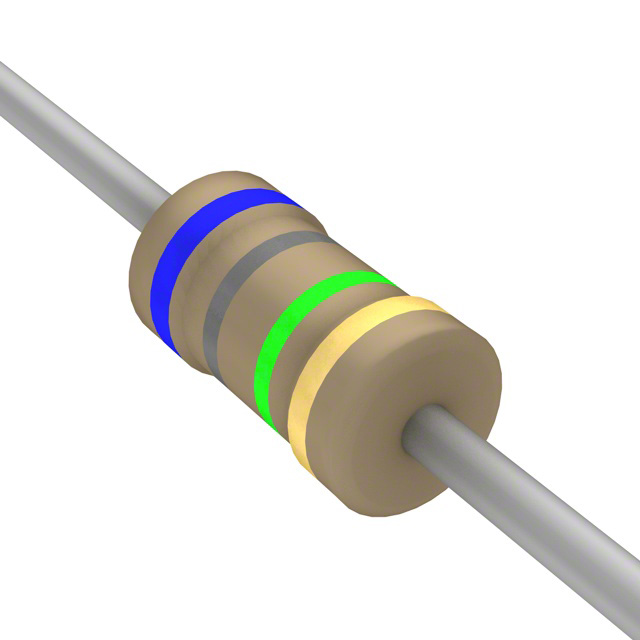

The CF18JB6M80 is a carbon film through-hole resistor manufactured by SEI Stackpole. It features a resistance value of 6.8 MOhms with a tolerance of ±5%. The component has a power rating of 125 mW (1/8 W) and utilizes an axial leaded package for PCB mounting. It operates within a temperature range of -55°C to +155°C and carries a flame retardant coating.

Feature Summary

• Constructed using carbon film technology for general-purpose applications
• Features standard flame retardant coatings for safety compliance
• Designed for axial PCB mounting in commercial and industrial environments

Applications

• Commercial electronic equipment
• Industrial control circuits
• General purpose signal conditioning

Procurement Notes

Verify the specific packaging configuration, as bulk and reel options may exist within the series. Confirm RoHS compliance status directly with the manufacturer or authorized distributor documentation prior to integration. Ensure the axial lead dimensions match the target PCB footprint requirements for proper installation.

Selection Notes

Select this component when high resistance values are required in a compact 1/8 W form factor. The wide operating temperature range supports use in demanding thermal environments. Consider the ±5% tolerance for non-critical biasing or pull-up/pull-down applications where precision is not paramount.

Part Context

This part belongs to the CF/CFM series of carbon film resistors from SEI Stackpole. The series is characterized by its cost-effectiveness and reliability for standard electronic assemblies. The 'JB' suffix typically denotes the 1/8 W power rating and bulk packaging variant within the manufacturer's coding system.

Replacement Considerations

Direct substitutes include other 6.8 MOhm, 1/8 W, ±5% carbon film resistors from manufacturers such as Yageo or Vishay. Verify that replacement parts maintain the same axial lead spacing and physical dimensions to ensure compatibility with existing PCB layouts.
