CF18JB91K0

Overview

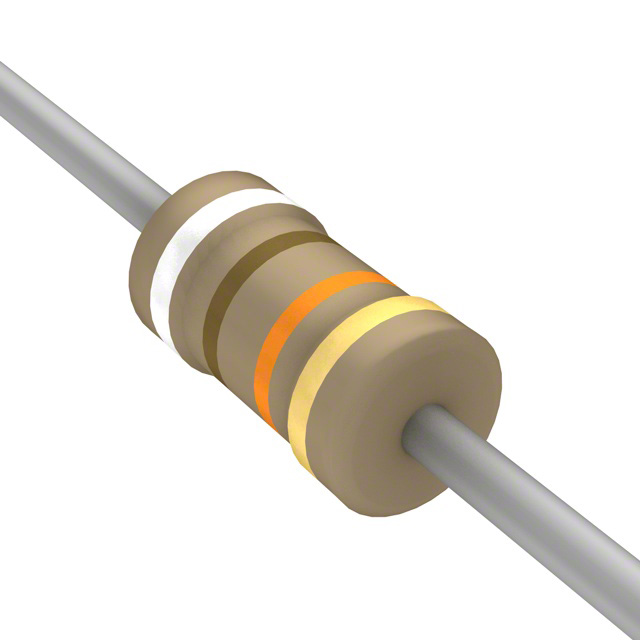

The CF18JB91K0 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 91 kOhms with a tolerance of ±5%. The component has a power rating of 0.125W (1/8W) and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.067 inches in diameter by 0.130 inches in length (1.70mm x 3.30mm). The device carries a flame retardant coating for safety compliance.

Feature Summary

• Flame retardant coating standard for enhanced safety
• Carbon film composition for general purpose applications
• Axial leaded package suitable for PCB mounting

Applications

• Commercial electronic equipment
• Industrial control circuits
• General purpose circuit protection

Procurement Notes

Verify the specific packaging configuration, such as bulk or ammo pack, against the official datasheet before ordering. Confirm that the manufacturer part number matches the required resistance and tolerance specifications exactly. Ensure compatibility with existing assembly processes regarding axial lead spacing and body dimensions.

Selection Notes

Select this component when a 1/8W power rating is sufficient for the circuit design. The ±5% tolerance suits standard commercial applications where high precision is not critical. Consider the operating temperature range to ensure reliability under expected environmental conditions.

Part Context

This resistor belongs to the CF series of carbon film components from Stackpole Electronics. The series is designed for general-purpose use in various electronic assemblies. The CF18JB91K0 variant specifically addresses needs for moderate resistance values with standard reliability requirements.

Replacement Considerations

Check for equivalent parts within the same series offering identical electrical ratings. Verify that any substitute maintains the same axial package dimensions and lead configuration for direct board replacement.
