CF18JB9M10

Overview

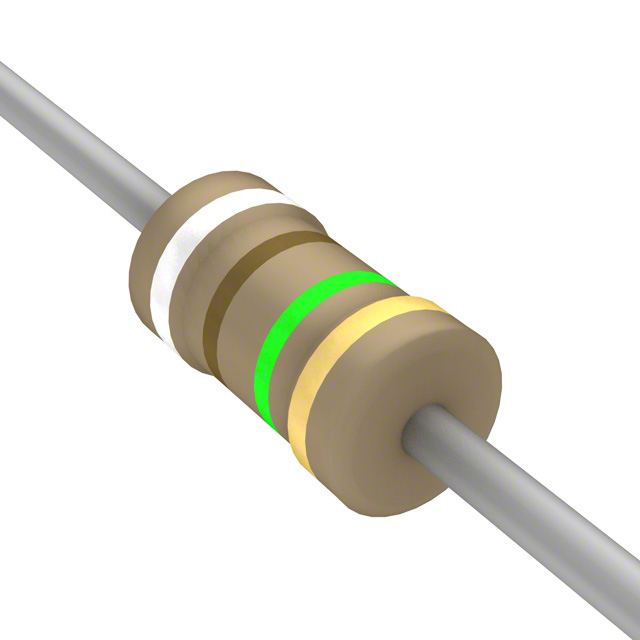

The CF18JB9M10 is a carbon film axial leaded resistor manufactured by SEI Stackpole. It features a resistance value of 9.1 MOhms with a tolerance of ±5%. The component has a power rating of 125 mW (1/8 W) and operates within a temperature range of -55°C to +155°C. It utilizes a tubular package with dimensions of 1.7 mm diameter by 3.3 mm length. The device includes standard flame retardant coatings and complies with RoHS directives.

Feature Summary

• Standard flame retardant coating for enhanced safety
• Suitable for commercial and industrial applications
• Compatible with Panasert insertion processes on selected sizes

Applications

• Commercial electronic equipment
• Industrial control circuits
• General purpose PCB mounting

Procurement Notes

Verify the specific suffix 'JB' confirms the 5% tolerance and carbon film composition as per official datasheets. Confirm packaging type, typically bulk or tape/reel, matches project requirements. Check current availability status as production cycles may vary. Ensure compliance with local environmental regulations such as RoHS and REACH before finalizing procurement orders.

Selection Notes

Select this component when a high-resistance value in the megaohm range is required for through-hole mounting. The 1/8 W power rating suits low-current signal paths rather than power handling. Consider the physical size constraints of the 1.7x3.3 mm body. Verify that the operating temperature range meets the environmental conditions of the target application.

Part Context

This part belongs to the CF/CFM series of carbon film resistors from Stackpole Electronics. The series offers general-purpose solutions for various electronic designs. The CF designation indicates carbon film technology, while the 18 code specifies the 1/8 W power rating. This family provides reliable performance for standard circuit protection and signal conditioning tasks.

Replacement Considerations

Direct parameter-equivalent substitutes include CF18JB9M10 variants from other manufacturers if available. Cross-reference with CF18JA9M10 for potential tolerance differences. Verify pin compatibility and thermal characteristics before substitution.
