CF1JB470K

Overview

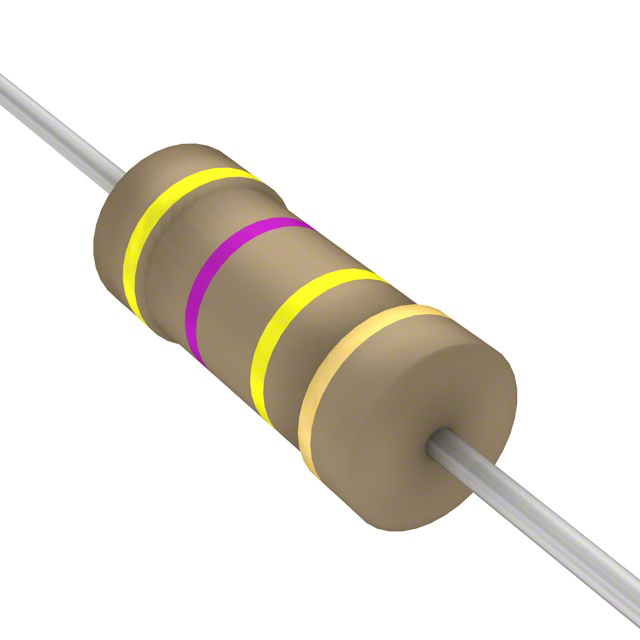

The CF1JB470K is a through-hole axial carbon film resistor manufactured by Stackpole Electronics Inc. It features a nominal resistance of 470 kOhms with a tolerance of ±5%. The component has a power rating of 1W at 70°C and operates within a temperature range of -55°C to +155°C. It utilizes a flame-retardant coating for safety compliance.

Feature Summary

• Flame-retardant coating for enhanced safety
• Carbon film technology for general-purpose use
• Axial leaded package for through-hole mounting

Applications

• General-purpose electronic circuits
• Power supply units
• Industrial control equipment

Procurement Notes

Verify the specific manufacturer part number against official Stackpole documentation to ensure authenticity. Confirm that the component meets RoHS3 compliance requirements as stated in the datasheet. Check for any specific packaging options such as cut tape or bulk, depending on assembly needs. Ensure the supplier provides valid traceability documents.

Selection Notes

Select this component when a 1W power rating is required for high-resistance applications. The carbon film composition offers cost-effectiveness compared to metal film alternatives. Verify that the operating environment stays within the specified temperature limits. Consider the axial package dimensions for PCB layout constraints.

Part Context

This resistor belongs to the CF series of carbon film resistors from Stackpole Electronics. It is designed for robust performance in standard electronic assemblies. The series is known for providing reliable resistance values across various industrial and commercial applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
