CF2JB75K0

Overview

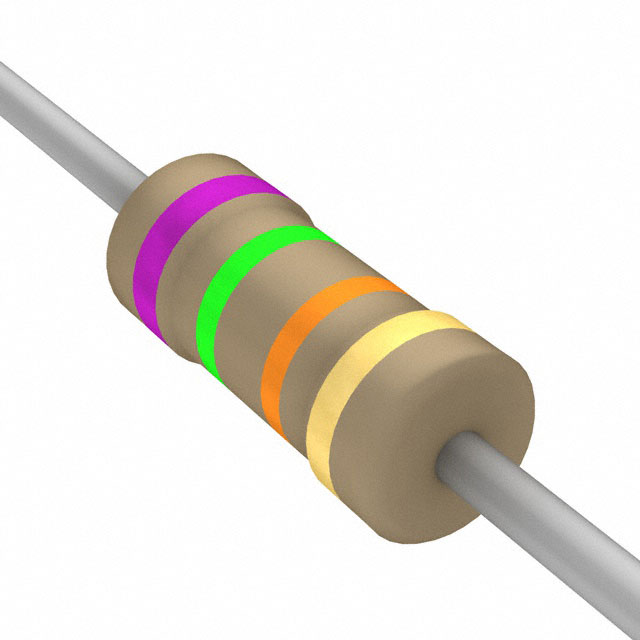

The CF2JB75K0 is a carbon film axial through-hole resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 75 kOhms with a tolerance of ±5%. The component has a power rating of 2W and operates within a temperature range of -55°C to +155°C. Its physical dimensions are 0.197 inches in diameter by 0.591 inches in length (5.00mm x 15.00mm). The device complies with RoHS3 standards and carries an ECCN classification of EAR99.

Feature Summary

• Constructed using carbon film technology for stable resistive performance.
• Features a flame-retardant coating for enhanced safety during operation.
• Designed with an axial leaded package suitable for PCB mounting.

Applications

• General-purpose electronic circuitry
• Industrial control systems
• Consumer electronics assemblies

Procurement Notes

Verify the specific manufacturer part number against official Stackpole documentation to ensure accuracy. Confirm that the required tolerance, power rating, and physical dimensions match the design specifications. Check for compliance with relevant environmental regulations such as RoHS3 before finalizing procurement decisions.

Selection Notes

Select this component when a 2W axial carbon film resistor is required. Ensure the operating environment stays within the specified temperature limits. Verify that the ±5% tolerance meets the circuit requirements. Consider the physical size constraints for PCB layout compatibility.

Part Context

This resistor belongs to the CF series of carbon film components from Stackpole Electronics. These parts are designed for general-purpose applications requiring reliable performance at moderate power levels. The axial format allows for easy insertion into printed circuit boards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer cross-reference guides for verified alternatives.
