CF4025M00008T1243013

Oscillators Overview

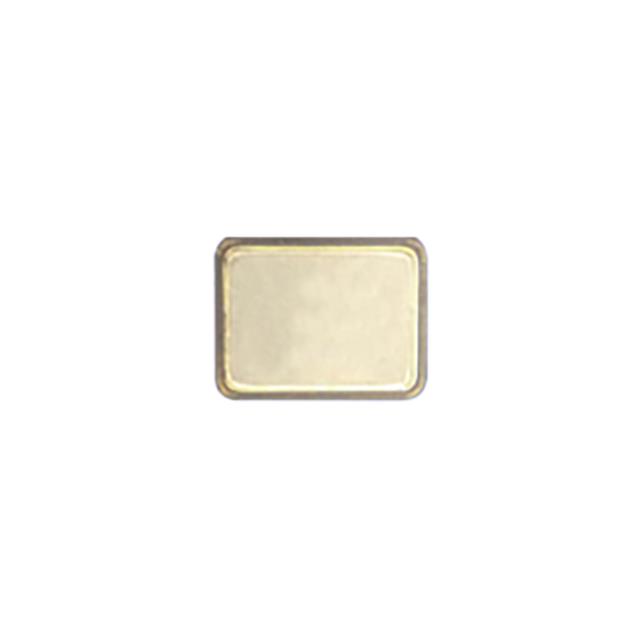

The CF4025M00008T1243013 is a quartz crystal oscillator manufactured by Hefei Jingweite Electronics Co., Ltd. It operates at a fundamental frequency of 25 MHz with a load capacitance specification of 8 pF. The component utilizes a surface-mount package with dimensions of 3.2 mm in length and 2.5 mm in width, designated as the 3225 format. Frequency tolerance is maintained within ±10 ppm across an operating temperature range spanning from -40°C to +85°C.

Oscillators Feature Summary

• Surface-mount design for automated assembly integration
• Quartz crystal resonator technology for stable oscillation
• Wide industrial temperature range capability

Oscillators Applications

• General-purpose clock signal generation
• Microcontroller system timing references
• Embedded digital circuit synchronization

Oscillators Procurement Notes

Verify the specific manufacturer datasheet for detailed electrical characteristics and mechanical drawings before integration. Confirm that the 3225 package footprint matches the target PCB layout requirements. Ensure the 25 MHz frequency aligns with the system clock architecture. Validate the ±10 ppm tolerance meets the application's timing accuracy constraints. Check the -40°C to +85°C range against environmental conditions.

Oscillators Selection Notes

Select this component when a compact 3225 form factor is required for space-constrained designs. Choose based on the need for a 25 MHz reference signal with standard industrial temperature resilience. Consider the 8 pF load capacitance compatibility with the driving circuit. Evaluate the ±10 ppm stability against jitter-sensitive applications. Assess cost-effectiveness relative to higher-precision alternatives.

Oscillators Part Context

This oscillator belongs to the quartz crystal device portfolio of Hefei Jingweite Electronics Co., Ltd., a national high-tech enterprise specializing in frequency control components. The company integrates research, development, and production of reliable quartz crystals. This specific model represents a standard surface-mount solution within their broader catalog of electronic frequency devices.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 3225 package 25 MHz oscillators only if the original source confirms functional equivalence. Verify pinout and loading capacitance compatibility before substitution.
