CFL-A7BP-622.08TS

Oscillators Overview

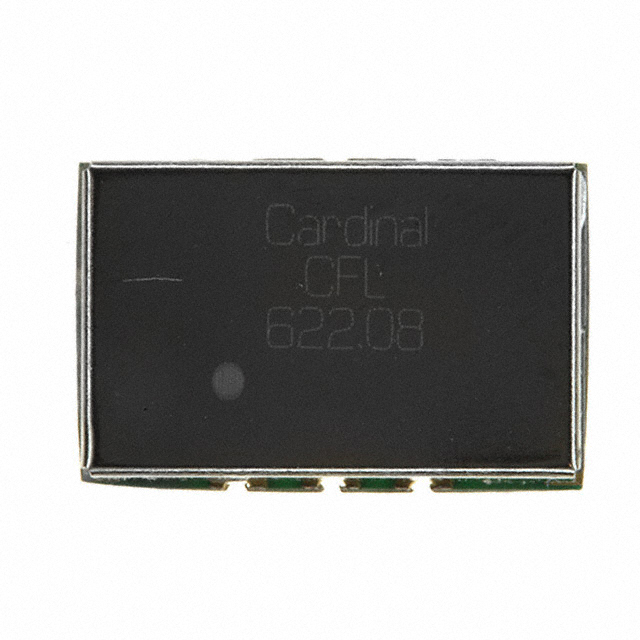

The CFL-A7BP-622.08TS is a surface-mount crystal oscillator manufactured by Cardinal Components Inc. It operates at a nominal frequency of 622.08 MHz with an LVDS output type. The device requires a supply voltage of 3.3 V and features a tri-state function for enable/disable control. It utilizes a 6-pin SMD package without leads, measuring 0.138 inches (3.50 mm) in height. The unit exhibits a frequency stability of ±50 ppm and complies with RoHS standards.

Oscillators Feature Summary

• Generates a precise 622.08 MHz clock signal using Low-Voltage Differential Signaling (LVDS) technology.
• Incorporates a tri-state output mechanism allowing for active enable or disable control of the signal.
• Constructed in a compact leadless surface-mount package suitable for automated assembly processes.

Oscillators Applications

• High-frequency data transmission systems requiring differential signaling
• Telecommunications equipment operating at specific standard frequencies
• Digital circuitry requiring precise clock synchronization

Oscillators Procurement Notes

Verify that the target application supports LVDS logic levels and input requirements before integration. Confirm the 3.3 V supply voltage compatibility with the system power rails. Ensure the PCB footprint matches the specific dimensions of the 6-pin leadless SMD package to prevent mounting errors. Check for RoHS compliance documentation if environmental regulations apply to the final product assembly.

Oscillators Selection Notes

Select this component when a high-speed differential clock source is required at exactly 622.08 MHz. Consider the LVDS output for noise immunity in dense electronic environments. Evaluate the physical size constraints against the available board space for the 6-pin package. Assess the need for tri-state functionality to manage bus contention or power states within the design architecture.

Oscillators Part Context

This oscillator belongs to the family of field-programmable blank oscillators offered by Cardinal Components Inc. These devices allow for rapid customization of frequency specifications during the manufacturing process. The series provides flexibility for various industrial and commercial applications where standard fixed frequencies may not suffice.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
