CFLF-175-95-285

Overview

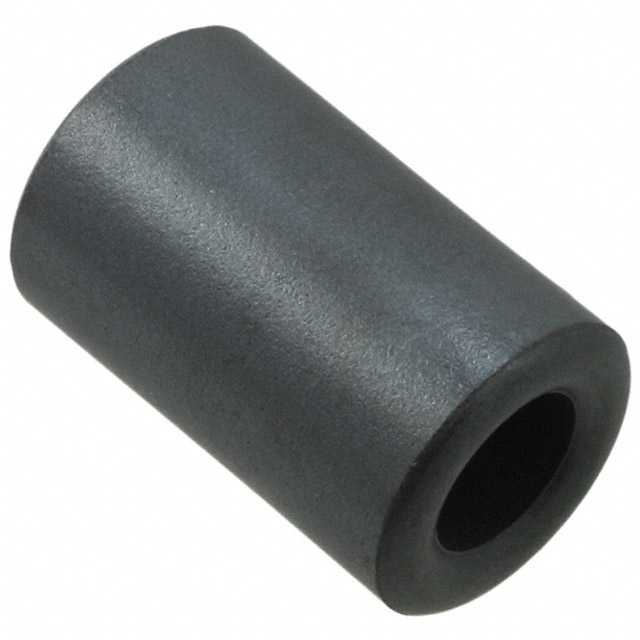

The Delevan CFLF-175-95-285 is a cylindrical EMI suppression ferrite core designed for cable mounting. It features a solid free-hanging construction with an internal diameter of 9.50 mm (0.374 inches) and an external diameter of 17.50 mm (0.688 inches). The component has a length of 28.50 mm (1.122 inches) and provides an impedance of 172 Ohms at 100 MHz. This part is manufactured by API Delevan and is suitable for suppressing electromagnetic interference on cables.

Feature Summary

• Cylindrical EMI suppression design for effective noise reduction
• Solid free-hanging construction for secure cable attachment
• Optimized impedance characteristics at 100 MHz

Applications

• Electromagnetic interference suppression on data cables
• Noise filtering in electronic equipment cabling
• Signal integrity enhancement in communication systems

Procurement Notes

Verify the specific impedance value required for your application, as sources cite 172 Ohms at 100 MHz. Confirm compatibility with cable diameters up to 9.50 mm. Check RoHS compliance status if environmental regulations apply. Ensure the free-hanging style meets mechanical constraints. Cross-reference datasheets from authorized distributors like Mouser or DigiKey for current specifications.

Selection Notes

Select this model when a cylindrical ferrite core with a 9.50 mm inner diameter is needed. Consider the 172 Ohm impedance at 100 MHz for high-frequency noise suppression. The free-hanging design allows for easy installation on existing cables without soldering. Verify that the physical dimensions fit within the available space in the assembly.

Part Context

This component belongs to the CFLF series of ferrite cable cores from API Delevan. These parts are engineered for EMI suppression applications where cylindrical geometry is preferred. The series offers various impedance and dimension combinations to suit different cable sizes and frequency requirements.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. When replacing, ensure the new component matches the 9.50 mm ID, 17.50 mm OD, and 28.50 mm length. Verify impedance characteristics at 100 MHz are equivalent to maintain performance.
