CFS-20632768HZFB

Crystals Overview

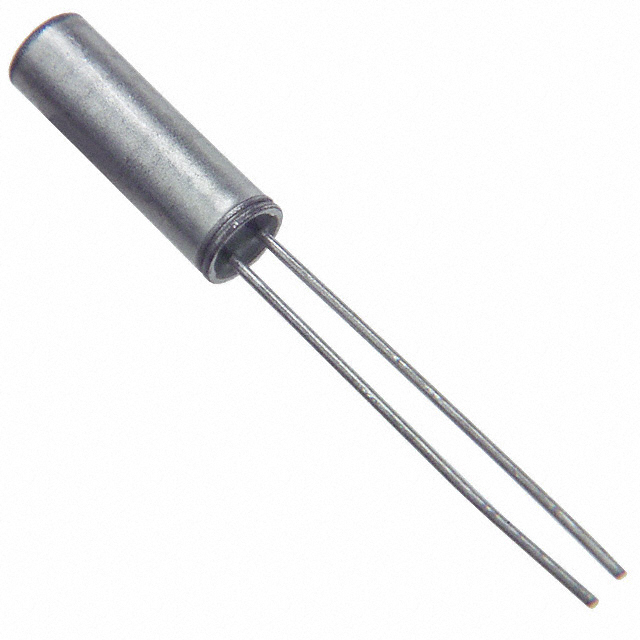

The CFS-20632768HZFB is a cylindrical tuning fork crystal manufactured by Citizen Finedevice. It operates at a nominal frequency of 32.768 kHz with a load capacitance of 12.5 pF. The component features an equivalent series resistance (ESR) of 35 kOhms and supports a maximum drive level of 1 micro watt. It utilizes AT-cut technology for stability.

Crystals Feature Summary

• Cylindrical radial package design
• Tuning fork crystal structure
• AT-cut resonator technology

Crystals Applications

• Real-time clock circuits
• Microcontroller oscillator inputs
• Digital watch timekeeping modules

Crystals Procurement Notes

Verify the specific tolerance grade required, as datasheets indicate availability in ±5ppm, ±10ppm, and ±20ppm variants. Confirm the operating temperature range matches application needs, typically -20°C to +70°C or -40°C to +85°C. Ensure the 12.5 pF load capacitance aligns with the host circuit design specifications before ordering.

Crystals Selection Notes

Select this component for low-frequency timing applications requiring a through-hole cylindrical form factor. The high ESR characteristic suits low-power oscillator designs. Verify that the host circuit can sustain oscillation with the specified 1 micro watt maximum drive level to prevent frequency drift or damage.

Crystals Part Context

This part belongs to the CFS-206 series of cylindrical crystals from Citizen Finedevice. These components are standard solutions for precise timekeeping in consumer electronics. The series offers various tolerance options to suit different accuracy requirements for clock generation tasks.

Crystals Replacement Considerations

Direct substitutes include other 32.768 kHz cylindrical crystals with matching 12.5 pF load capacitance. Verify mechanical dimensions and pin spacing compatibility. Alternative brands such as Epson or NDK offer similar cylindrical tuning fork packages.
